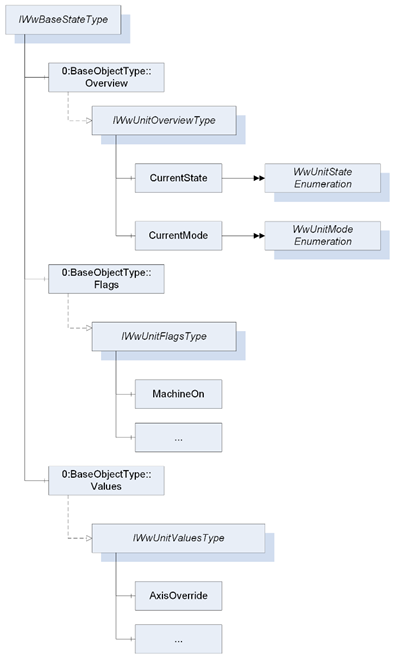

Figure 8 – Overview of IWwBaseStateType
The IWwBaseStateType represents the state of a unit and is formally defined in Table 18. An unit can be a machine or part of a machine.
Table 18 – IWwBaseStateType Definiton
Attribute |
Value |
||||
BrowseName |
IWwBaseStateType |
||||
IsAbstract |
True |
||||
References |
Node Class |
BrowseName |
DataType |
TypeDefinition |
Other |
Subtype of the BaseInterfaceType defined in OPC 10001-7 |
|||||
0:HasComponent |
Object |
Overview |
|
0:BaseObjectType |
M |
0:HasComponent |
Object |
Flags |
|
0:BaseObjectType |
O |
0:HasComponent |
Object |
Values |
|
0:BaseObjectType |
O |
The Overview Object provides a general overview of the unit.
The Flags Object provides the flags of the unit.
The Values Object provides the counters and values of the unit.
The components of the IWwBaseStateType have additional subcomponents which are defined in Table 19.
Table 19 – IWwBaseStateType Additional Subcomponents
Source Path |
Reference |
NodeClass |
BrowseName |
DataType |
TypeDefinition |
Others |
Overview |
0:HasInterface |
ObjectType |
IWwUnitOverviewType |
|
|
|
Flags |
0:HasInterface |
ObjectType |
IWwUnitFlagsType |
|
|
|
Values |
0:HasInterface |
ObjectType |
IWwUnitValuesType |
|
|
|
