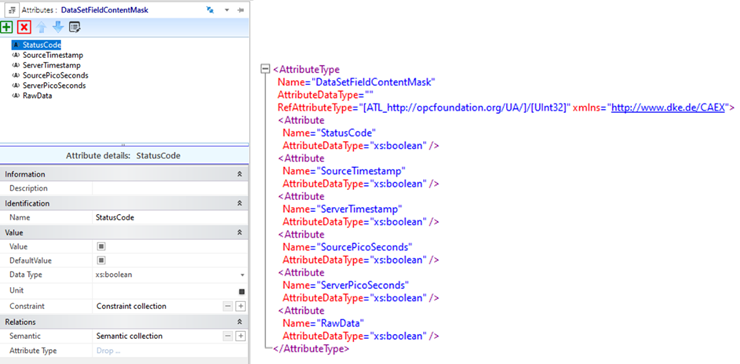

OptionSets and bit masks in OPC UA are integer types where each bit is an independent named field that has a Boolean value. In AutomationML, this is mapped to an AttributeType with a set of contained attributes of type xs:Boolean, where the name of each contained attribute matches the field name in the bit mask or option set. Figure A.5 shows an example of OptionSets mapping.


Figure A.5 – Example of OptionSets mapping
