The ConnectionConfigurationType ObjectType describes the configuration information needed to establish a single Connection contained in the ConnectionConfigurationSetType.

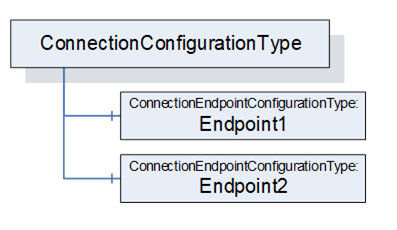

The ConnectionConfigurationType is illustrated in Figure 40.
Figure 40 – ConnectionConfigurationType illustration
The ConnectionConfigurationType is formally defined in Table 94.
Table 94 – ConnectionConfigurationType definition
|
Attribute |
Value |
||||
|
BrowseName |
4:ConnectionConfigurationType |
||||
|
IsAbstract |
False |
||||
|
References |
NodeClass |
BrowseName |
DataType |
TypeDefinition |
Other |
|
Subtype of the 0:BaseObjectType defined in OPC 10000-5 |
|||||
|
0:HasComponent |
Object |
4:Endpoint1 |
|
4:ConnectionEndpointConfigurationType |
M |
|
0:HasComponent |
Object |
4:Endpoint2 |
|
4:ConnectionEndpointConfigurationType |
O |
|
ConformanceUnits |
|||||
|
UAFX ConnectionManager Base |
|||||
Endpoint1 and the optional Endpoint2 hold the configuration information for the endpoints of the Connection. The ConnectionEndpointConfigurationType is defined in 6.11.
