The OPC UA FX Information Model defines well-known instances (see Table 229 and Table 230) that are used to group OPC UA FX Object instances. OPC UA FX Object instances may also exist in other Folders or in other groupings. Figure 62 provides an overview of these instances.

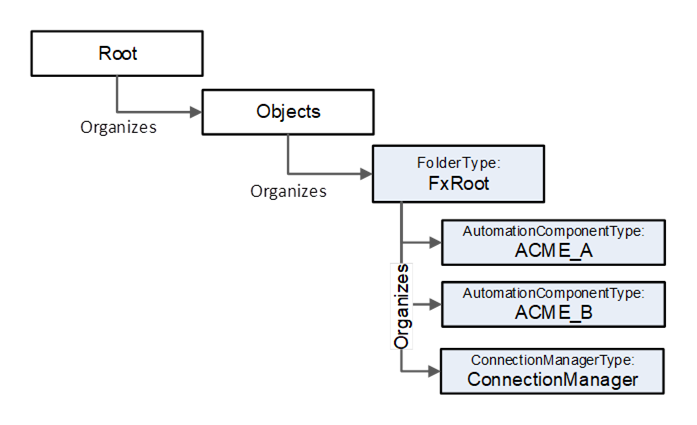

Figure 62 – FxRoot overview/example
The following instance shall exist in all Servers that expose an OPC UA FX Information Model. It is formally defined in Table 229.
Attribute |
Value |
|||
BrowseName |
2:FxRoot |
|||
References |
NodeClass |
BrowseName |
DataType |
TypeDefinition |
Organized by the Objects Folder defined in OPC UA Part 5 |
||||
HasTypeDefinition |
ObjectType |
0:FolderType |
|
|
ConformanceUnits |
||||
UAFX FxRoot |
The FxRoot is the base Object for all instances related to OPC UA FX. It may contain multiple AutomationComponents that include Assets and FunctionalEntities. It may also contain, at most, one ConnectionManager.
NOTE AutomationComponents are part of the Server (i.e., the Server exposes the AutomationComponents as instances). In the world of a physical controller, there would only be one instance of an AutomationComponent. In the world of digital twins, there might very well be multiple instances that represent each of the digitalized AutomationComponents – all running in one Server.
The following instance shall exist in all Servers that expose a ConnectionManager. It is formally defined in Table 230
Table 230 – ConnectionManager definition
Attribute |
Value |
|||
BrowseName |
4:ConnectionManager |
|||
References |
NodeClass |
BrowseName |
DataType |
TypeDefinition |
Organized by the FxRoot defined in 12.2 |
||||
HasTypeDefinition |
ObjectType |
4:ConnectionManagerType |
|
|
ConformanceUnits |
||||
UAFX ConnectionManager Base |
The ConnectionManager is the well-known object that represents a connection manager, a Server that supports a connection manager will always only have one instance of this Node.
