A.1.6 ObjectTypes and references used with instances DriveType for drives with drive-channels

Figure B.17 describes the usage of DriveType for a multi-slot-drive if deeper information of slot definition is not available.

It is allowed that several instances of MotorType reference IsDrivenBy to one multi-slot-drive.

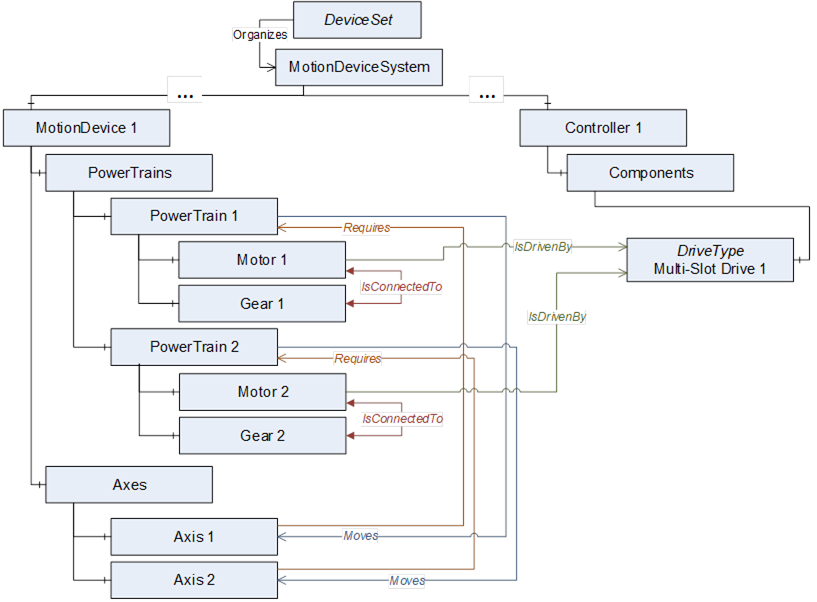

Figure B.17 – IsDrivenBy references to DriveType instances for multi-slot drives w/o slots
