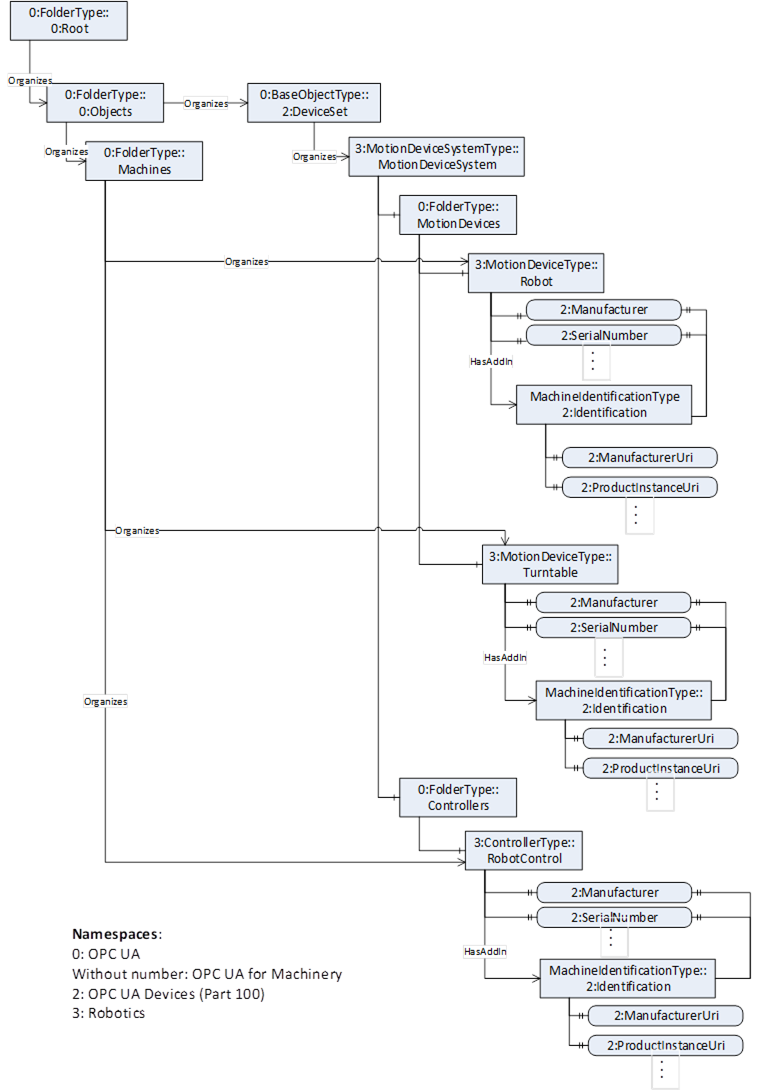

In Figure C.21 an example is given, showing the identification and Nameplate and Finding all Machines in Server use cases. The server provides information about a Robotics system.

As this Robotics specification Part 1 already defines some Properties for identification directly, those are only referenced from the Identification functional group.

Note that a Robotics system typically contains several machine parts with own nameplates. E.g. the Declaration of Incorporation of Partly Completed Machinery according Machinery Directive 2006/42/EU for robots provides the Model and the SerialNumber for the robot and for the controller.

Figure C.21 – Example Finding all Machines and Machine Identification
