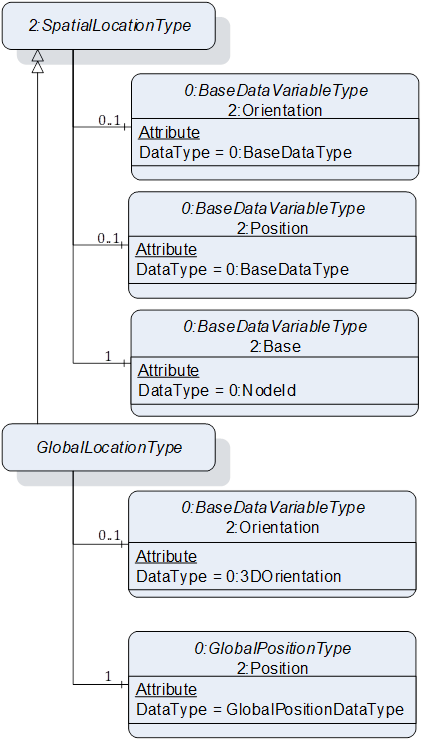

The global location uses the global position as base to provide the global position and adds information about the orientation in the GlobalLocationType VariableType (see 8.2). It provides the main information as value (in the GlobalLocationDataType) and in addition, the position and orientation as subvariables with additional meta data. The orientation is used as defined in OPC 10000-210. In Figure 7, the GlobalLocationDataType is shown.
