LDAP servers contain objects organized into hierarchies. Each object has an objectClass which specifies a number of attributes. Attributes have values which describe an object. Figure 39 illustrates a sample LDAP hierarchy which contains entries describing UA servers.

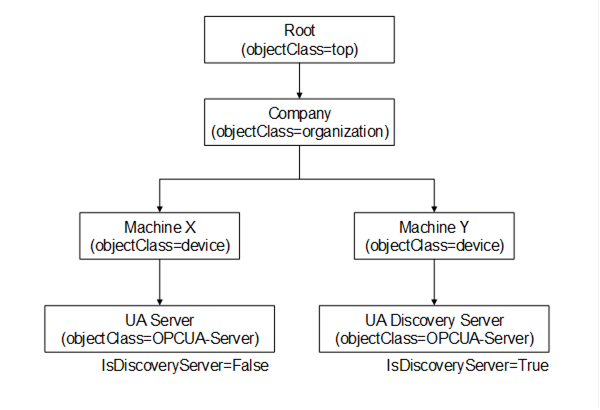

Figure 39 – Sample LDAP Hierarchy
UA applications are stored in LDAP servers as entries with the UA defined objectClasses associated with them. The schema for the objectClasses defined for UA are shown in Table 120.
Table 120 – LDAP Object Class Schema
|
Name |
LDAP Name |
Type |
OID |
|
Application |
opcuaApplication |
Structural |
1.2.840.113556.1.8000.2264.1.12.1 |
|
ApplicationName |
cn |
String (Required) |
Built-in |
|
HostName |
dNSName |
String |
Built-in |
|
ApplicationUri |
opcuaApplicationUri |
Name |
1.2.840.113556.1.8000.2264.1.12.1.1 |
|
ApplicationType |
opcuaApplicationType |
Boolean |
1.2.840.113556.1.8000.2264.1.12.1.3 |
|
DiscoveryUrl |
opcuaDiscoveryUrl |
String, Multi-valued |
1.2.840.113556.1.8000.2264.1.12.1.4 |
This OID is globally unique and can use used with any LDAP implementation.
Administrators may extend the LDAP schema by adding new attributes.
