This example explains how an optimized firmware update for a modular device or machine can look like. Therefore, multiple firmware packages are gathered into one solution package and send to the OPC UA server all at once to avoid multiple transfer sequences.

A modular or complex device or a machine are consisting of several modules, components or sub-devices. Each of them has their own firmware (or even configuration). In the traditional way each of them has an own instance of the SoftwareUpdateType object and each of them requires a download and install activity for the firmware. This can lead to duplicated download firmware package and/or often executed sequentially, means each firmware packages are transferred separately by opening each a new connection/channel for the download, which takes a lot of time in cases of larger installations.

Following a standardized way of managing modular devices or device with multiple content to loaded all at once:

1. Create a solution package see 8.7.5 to put all firmware, configuration or application into one package.
2. The UA server contains a SoftwareUpdateType instance which is classified as SoftwareClass Solution to identify that a solution package download/handling is supported. The object has the loading type FileSystemLoadingType, due to optional version as a solution package may not have a version number.. The version check will be done with ValidateFiles operation, where device will check each sub-package against the assigned information.

Example of a UA address space “Modular Device”:

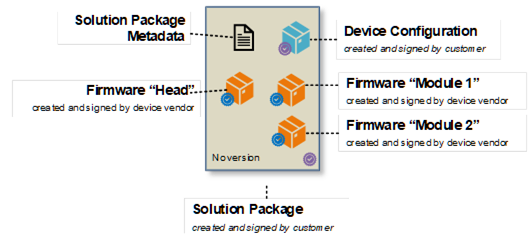

Figure B.9: Solution Package example “Modular Device”.

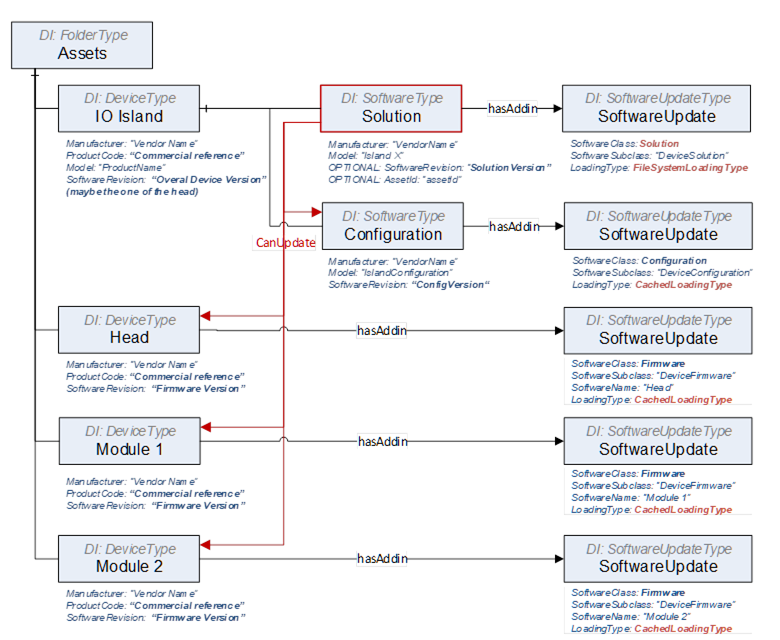

Figure B.10: UA address space example for the server “Modular Device”.

Example of a UA address space “Single Device”:

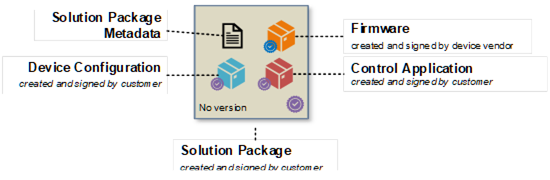

Figure B.11: Solution Package example “Single Device”.

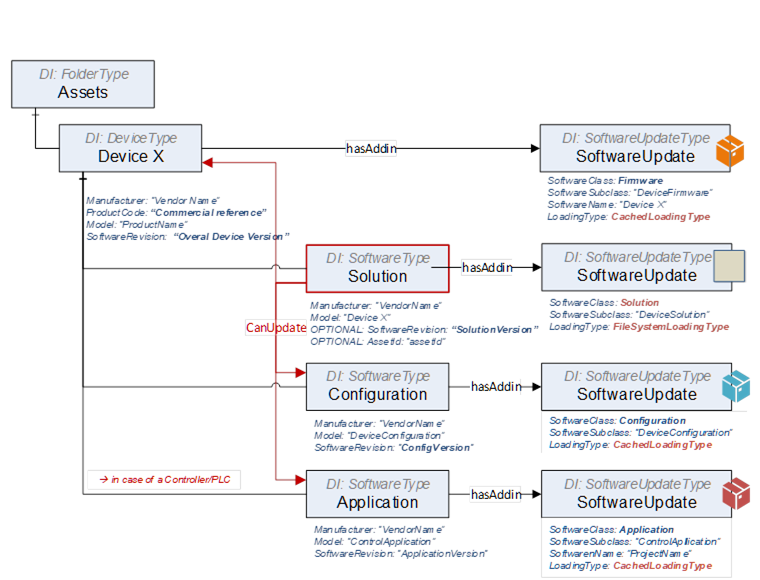

Figure B.12: UA address space example for the server “Single Device”.

Example of a UA solution package metadata “Single Device” showing the assignment:

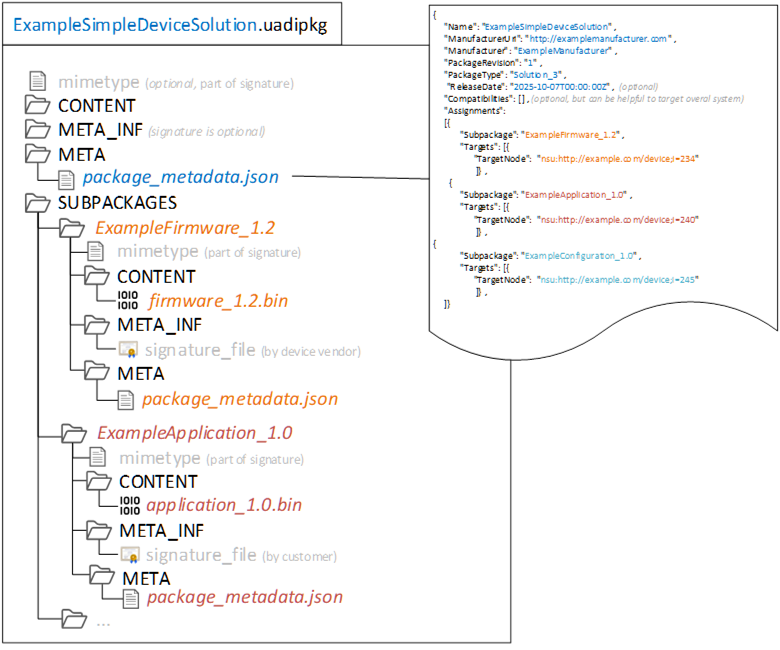

Figure B.13: Solution package metadata "Single Device” example

There is the situation that a tool is connecting to a device and need to create an individual update for this device solution, which may include just a subset of elements.

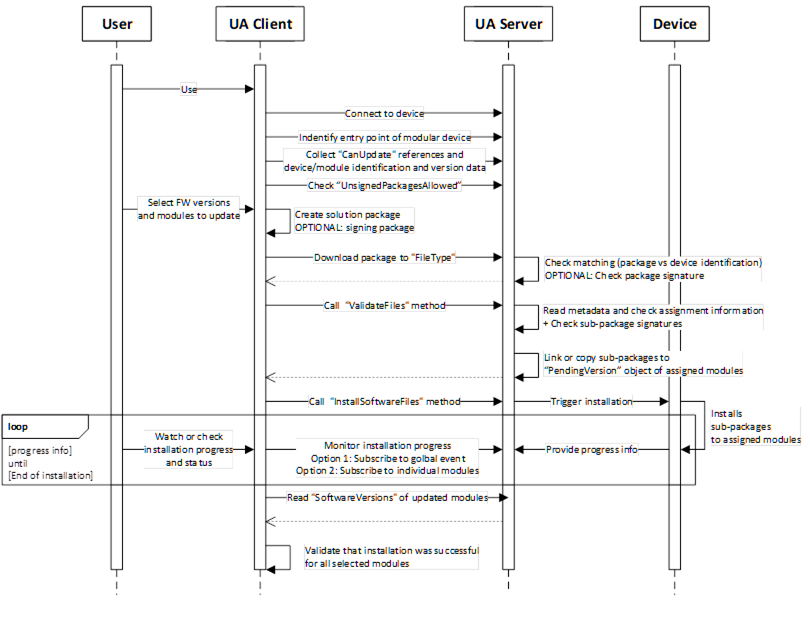

Figure B.14: Update sequence for a modular device using a solution package.

Steps of the workflow:

1. Connect to the device via the UA server.
2. The client finds the entry point of the modular device, that can happen by:
3. Knowing the structure such as UADI:DeviceType or UAFX:AssetType
4. Finding the object with software class “Solution” behind,
5. In cases of a sever hosting multiple devices, the user selects the right one or the client knows the identification of the target device.
6. Browse the references CanUpdate of the “Solution” object to know devices can be updated via a solution package. Afterwards read the identification of the linked modules.
7. Check the flag “UnsignedPackagesAllowed” to know if a solution package is required to be signed.
8. User selects the FW version or config/application and modules/targets that should be updated.
9. Client creates a new solution package with the selected content. It includes:
10. Creating of the solution package and pack the sub-packages into it.
11. Creating a package metadata file that contains the assignment information.
12. Optionally sign the solution package with a customer provided certificate or service.
13. Client downloads the solution package to the device.
14. Device is doing an overall check on the package level if its valid and intended for this device.
15. Optional checking the package signature
16. Client calls ValidateFiles to trigger a check of the metadata data about assignments
17. For the successful matched elements, the sub-packages are copied or linked to the SoftwareUpdate instances of each device into the PendingVersion.
18. Server is returning the info which elements are ready for update and which are not supported
19. Client tiggers the installation process by calling InstallSoftwareFiles. This triggers the real installation process on the device side.
20. Device is installing the selected version. That can happen in parallel or sequential or combined way depending on the device capabilities. This is up to the devices.
21. Client is subscribing to [a] or/and [b] to get progress and status of the installation process.
22. A global event (aggregates all progress and status updates via the module and update ID, so that the client can see the details on module is referred)
23. Each individual module
24. Device is sending the progress and status information.
25. After client received the message for end of installation, he is reading the module identification with software revision to check if installation was really successful.

A 3 rd instance has created a solution package. The assignment of sub-packages to target modules is in the package metadata.

Variation 1: The tool knows the solution package format and can check metadata and signature. The solution package is a Whitebox for the tool and the tool can make a pre-check on matching and compatibility before downloading the solution package to the device.

Figure B.15: Update sequence for a modular device using an imported solution package.

Variation 2: The tools is not able to process the solution package (unknown format), it can’t check the package and it’s package metadata. The solution package is a Blackbox for the tool. The solution package is loaded to the device without any pre-check, may the selection to target device needs to be done manually, and device is take over this part of doing match and compatibility check directly after receiving the solution package.

Figure B.16: Update sequence for a modular device using unknow solution package.

Variation 3: The tool knows the solution package format and can check metadata and signature. But in the package, there may be some sub-packages which the format is unknown (proprietary) to the tool, The tool can’t process the sub-package and its metadata.

The main idea of the solution package is to create a consistent description of all the content that is gathered within the package to be able to do a pre-check before sending any content to a target, means there should be some description of each subpackage in terms of what it is and what to be checked by the tool to enable a successful execution of the package on the target.

Therefore, the unknown (proprietary) content or package need to be descripted at least with a minimal set of parameters. A full and final check needs to be done anyhow by the target itself. That means creating a kind of wrapper to this UA package format by adding a package metadata file, containing at least the minimal set of information to a description about what the package is and for whom is it made for.

Figure B.17: Example of wrapping an unknown content within a solution package

In case a solution Package is NOT signed, due to:

• the user doesn’t have the certificate from the device (individual creation of a solution package at customer site by the customer to update).
• the device using customer specific certificates (tool that creates the solution package may not have access to these certificates).
• no PKI infrastructure is available.

It represents a potential security risk and to mitigates it, following considerations has been done:

1. Sub-package(s) itself are still signed by the vendor such as firmware packages, means no execution of unsigned data in the server though the sub packages. Sub-packages that can’t be signed by the vendor like configurations or applications, shall be signed by the customer or the tool shall inform the user about a usage unsigned content in a sub-package.

1. Trust relation between tool and server is in place based on UA connections and sessions.

Tool as trust anchor, similar as signature check outsourced by a PKI / GDS

Server is trusting the tool, allowing tool to do firmware update.

The tool has to authenticate and authorize itself through login/token and application trust list.

1. Solution packages is created by the tool that has this trust relation.

1. For 3rd instance created packages that has been imported, the tool should inform user Users shall be informed about possible risks when using this option of unsigned solution packages. (Informative)

The server can write to a log or send an event to the client

Instruction for the need that a solution package must be signed:

1. Use an attribute “UnsignedPackagesAllowed” and set value to “FALSE”.
2. Implement recommended security settings and behaviour that only an admin or security expert can change this setting
