This standard Object is the browse entry point for Object Nodes which represent different types of locations. Figure 9 illustrates the structure beneath this Node. Only Organizes References are used to relate Objects.

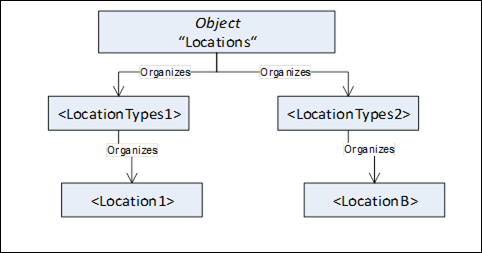

Figure 9 – Locations organization

The intent of the "Locations" Object is an entry point for different types of locations. The types of locations organize locations.

The "Locations" Object is formally defined in Table 101.

Table 106 – Locations definition

Attribute

Value

BrowseName

Locations

References

NodeClass

BrowseName

Comment

HasTypeDefinition

ObjectType

FolderType

Defined in 6.6

Conformance Units

Base Info Locations Object
