This standard Object Node is the browse entry point for ObjectType Nodes that represent Interfaces. Figure 8 illustrates the structure beneath this Node showing some of the standard ObjectTypes defined in clause 6. Only Organizes References are used to relate Objects and Interfaces to the “InterfaceTypes” standard Object. The “InterfaceTypesObject shall not reference any other NodeClasses.

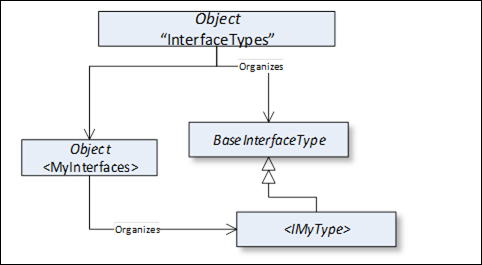

Figure 8 – InterfaceTypes Organization

The intention of the “InterfaceTypesObject is that all Interfaces of the Server are either directly or indirectly accessible browsing HierarchicalReferences starting from this Node. However, this is not required and Servers might not provide some of their Interfaces because they may be well-known in the industry.

The “InterfaceTypesObject is formally defined in Table 107.

Table 107 – InterfaceTypes definition

Attribute

Value

BrowseName

InterfaceTypes

References

NodeClass

BrowseName

Comment

HasTypeDefinition

ObjectType

FolderType

Defined in 6.6

Organizes

ObjectType

BaseInterfaceType

Defined in 6.9

Conformance Units

Address Space Interfaces
