The remainder of 8.61defines EventTypes. Their representation in the AddressSpaceis specified in OPC 10000-5. Other parts of this series of standards may specify additional EventTypes. Figure 38informally describes the hierarchy of these EventTypes.

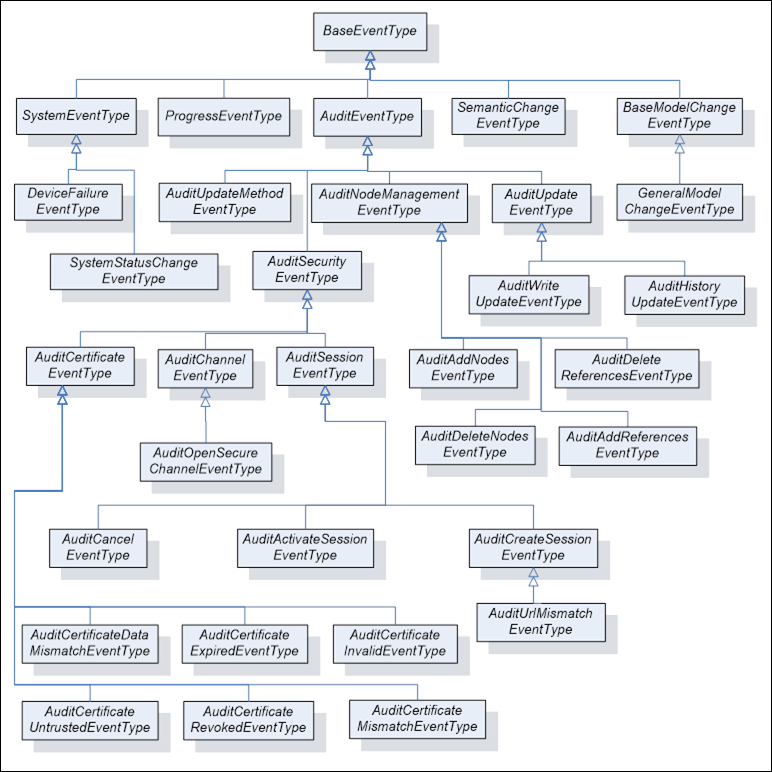

Figure 38– Standard EventType Hierarchy
