When generating LogRecords it is important that a context be associated with each LogRecord. This context information can be used to show a relationship between various LogRecords in a Server as well as relationships between LogRecords that are in different Servers. This context information is stored in the TraceContext field in the record (see definition in 5.5.2). If a hierarchy of related LogRecords is to be created, SpanId and ParentSpanId fields shall be used. When a function in a Server invokes another function in the same Server or in another Server as part of the same TraceId, the lower level function shall promote the SpanId of the higher level to be the ParentSpanId in the called function and a new SpanId shall be generated in the called function. This daisy chain of SpanId to ParentSpanId will allow a tree to be created for the LogRecords.

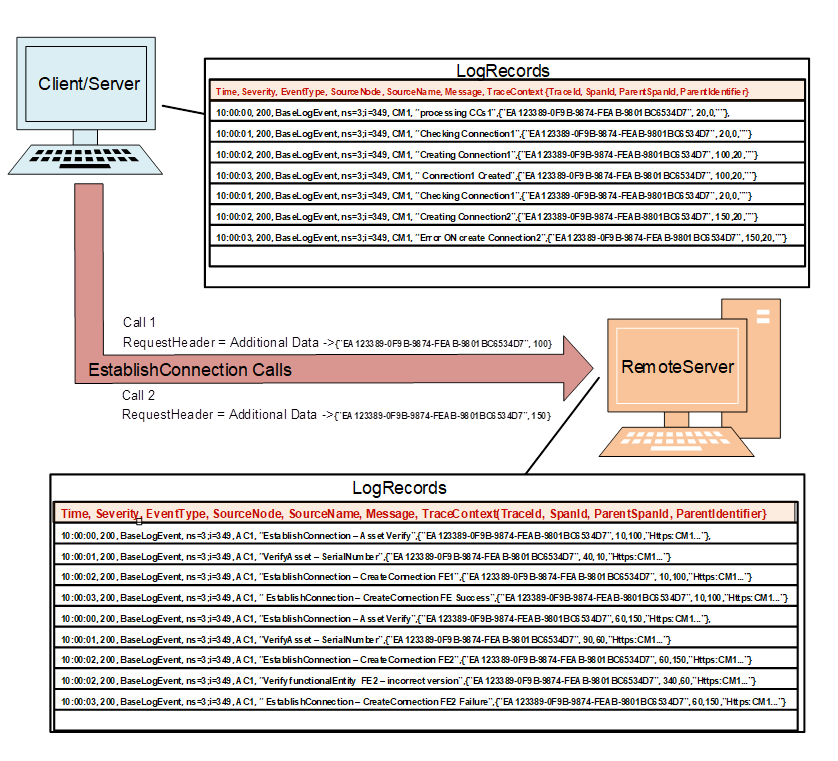

Figure 4 - TraceContext hierarchy example

Figure 4 provides an illustration of the LogRecords that could result from calls between two Applications that include TraceContext information. The first line is each table is a list of the fields in the comma-separated-value records. These field names correspond to the names used in the LogRecord structure.

The key points being illustrated for the hierarchy are the TraceId, SpandId, ParentSpanId and ParentIdentifier field, which are the last 4 items in each LogRecord entry. The TraceId is shown as the GUID and is constant for this illustration (it is one action from the Client/Server). Additional actions would result in separate TraceIds, but are not illustrated.

In the Client/Server there is no ParentIdentifier, since all action are internal to the Server. In the RemoteServer the ParentIdentifier indicates the Client/Server. The ParentIdentifier is the ApplicationUri of the Client that called into the Server. The ApplicationUri of the first Server is “Https:CM1…”( it has been truncated to allow it to fit in the example).

The SpanId and ParentSpanId shows where calls have been made. At the beginning of the first table, the ParentSpanId is zero, since this is the root SpanId (see Annex C for more explanation of SpanId). In the first table, when a sub function is called, the SpanId is promoted to the ParentSpanId and a new SpanId is generated (see the third LogRecord in the table).

The large arrow shows that the Client/Server calls into the RemoteServer twice. It passes in the TraceId and the SpanId on each call. The TraceId is the same, but the SpanId changes on each call.

The second table shows the LogRecords that are generated that resulted from the two innovations of the Method in the RemoteServer. The passed in SpanId becomes the ParentSpanId in the LogRecords and a new SpanId is generated. The RemoteServer also makes a call to a sub-function where the SpanId is promoted to the ParentSpanId.
