Figure A-3 illustrates how this model can be used inside of a Server. This sample includes multiple instances of AliasNameCategoryType. The figure illustrates that Objects might be referenced by more than one instance of AliasNameType.

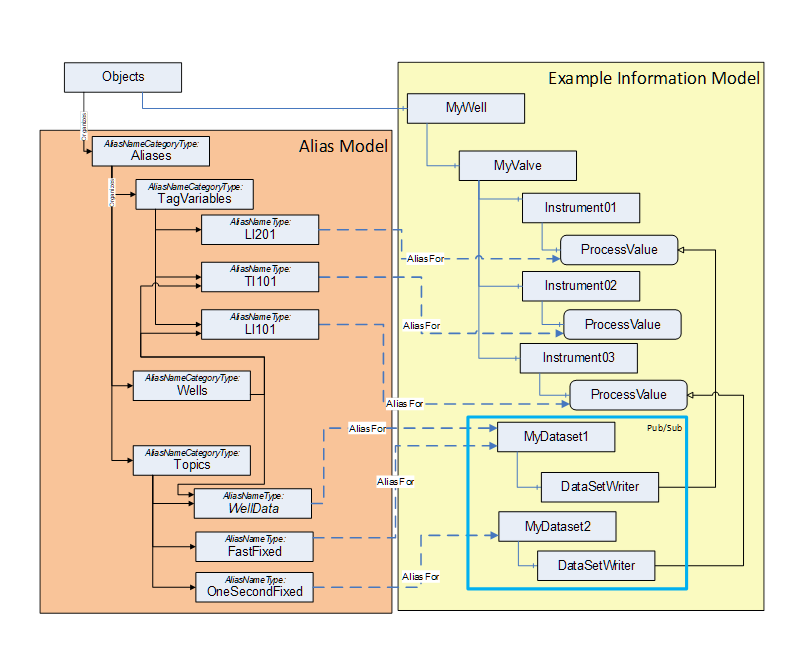

Figure A-3 - AliasNames in a Server example

The figure describes an information model for a well. This model contains a number of other Objects, which have Variables that are to be available via a standardized naming scheme. The model also includes a configuration for a Pub/Sub dataset that provides the Variables defined in the well.

The AliasName model includes the standard organization items that are required in this document. In addition, the model also defines an extra organizational item for grouping the well information. The example illustrates AliasNames that are both TagVariables and Topics.
