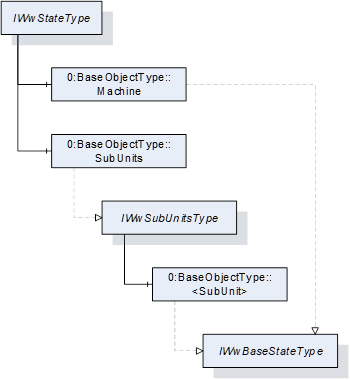

Figure 7 – Overview IWwStateType

The IWwStateType provides provides the machine state and is formally defined in Table 14.

Table 14 – IWwStateType Definiton

Attribute	Value
BrowseName	IWwStateType
IsAbstract	True
References	Node Class	BrowseName	DataType	TypeDefinition	Other
Subtype of the BaseInterfaceType defined in OPC 10001-7
0:HasComponent	Object	Machine		0:BaseObjectType	M
0:HasComponent	Object	SubUnits		0:BaseObjectType	O

Each instance of an IWwStateType represents an instance of a machine state. In the simplest case, there is only the Machine Object. The SubUnits Object is used when a machine has multiple states. For example, a CNC machine can have several places where independent jobs are produced.

The Machine state does not summarize the SubUnits states. It does not have to be based on the SubUnits states. It is a decision of the machine manufacturer.

The KPI calculation has to be done individually based on the special machine instance and its states.

The units of the IWwStateType have additional subunits which are defined in Table 15.

Table 15 – IWwStateType Additional Subunits

Source Path	Reference	NodeClass	BrowseName	DataType	TypeDefinition	Others
Machine	0:HasInterface	ObjectType	IWwBaseStateType
SubUnits	0:HasInterface	ObjectType	IWwSubUnitsType
