A joining system is a container to group set of information and methods into a logic unit.

Each joining system consists of various modules for Asset Management, Result Management, Joining Process Management, Joint Management and respective Events and Alarms. Each of the modules provides a set of methods for external systems to interact with the joining system.

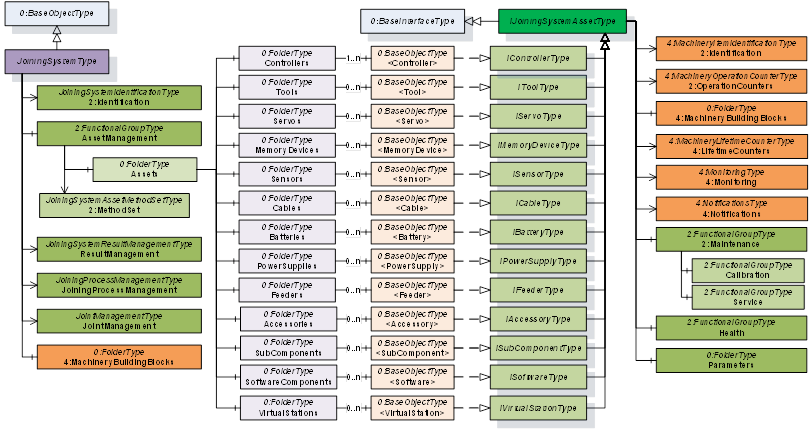

Figure 7 – Joining System Information Model
