Use of HasCondition in a VariableType is a special use case since Variables (and VariableTypes) are not allowed to be the source of a HasComponent Reference to an Object. Figure 2929 provides an example of this use case. Note that there is no component relationship for the “LvelMonitoring” Alarm. It is Server-specific whether and where they assign a HasComponent Reference.

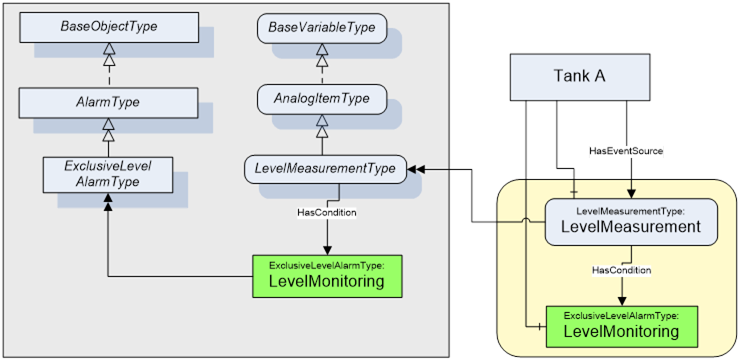

Figure 2929 – Use of HasCondition in a VariableType
