The following types are used to expose diagnostics information in the PubSub information model. Each level of the PubSub hierarchy shall contain its own diagnostics element in a standardized format. An overview over the proposed diagnostics architecture is given in Figure 46.

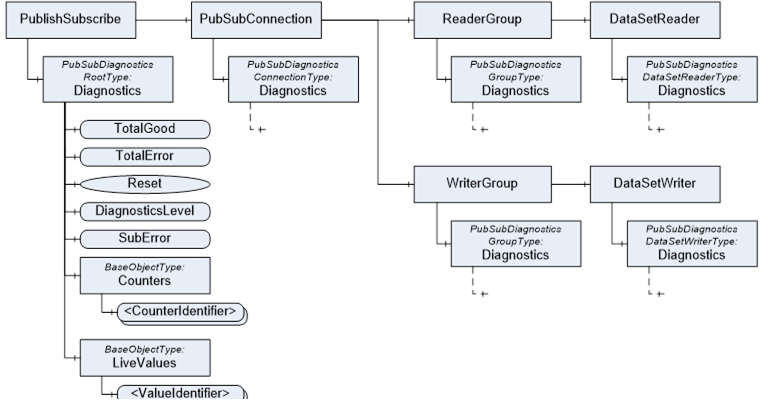

Figure 46 – PubSub Diagnostics overview

Figure 47 shows the structure of a Variable which holds a diagnostics counter with defined Properties. The PubSubDiagnosticsCounterType is formally defined in

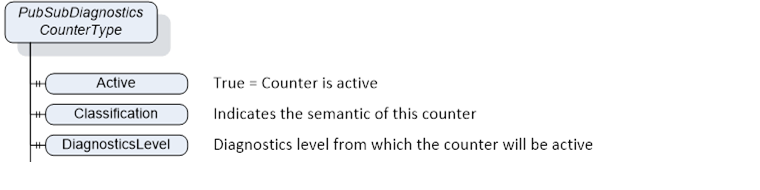

Figure 47 – PubSubDiagnosticsCounterType
