The ConnectionManager processes ConnectionConfigurationSets to establish connections. This clause contains examples for ConnectionConfigurationSets. A ConnectionConfigurationSet contains a set of logical connections, which the ConnectionManager establishes as a complete set.
A ConnectionConfigurationSet may contain
- a single logical connection between two FunctionalEntities,
- multiple logical connections between FunctionalEntities located on two AutomationComponents,
- or multiple logical connections between FunctionalEntities located on multiple AutomationComponents.

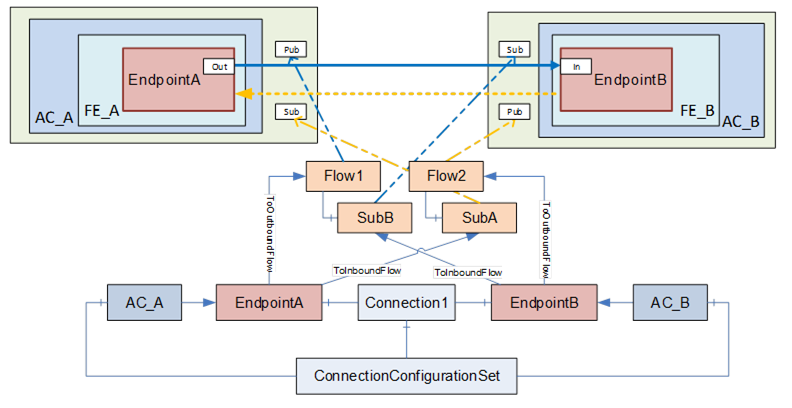

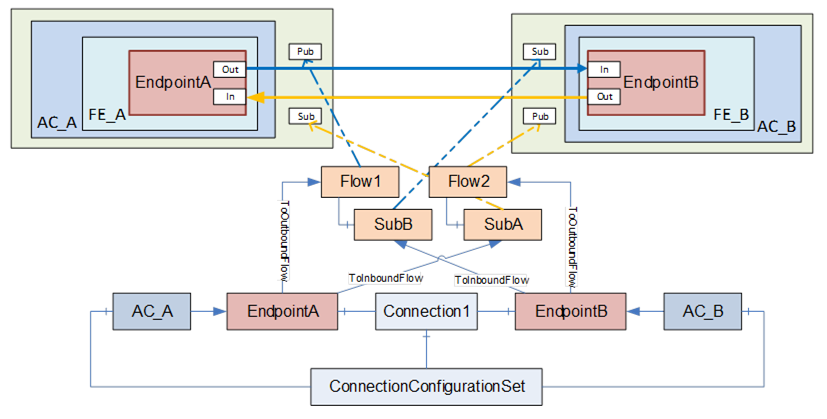

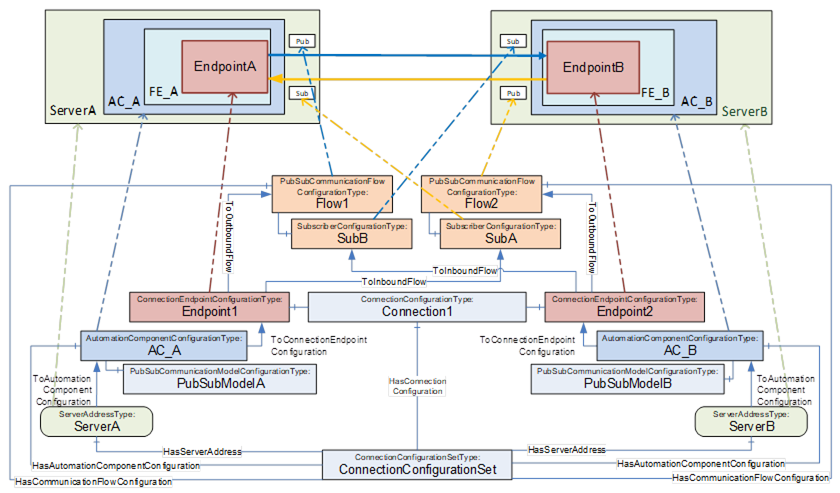

Figure E.1 depicts the configuration elements contained in a ConnectionConfigurationSet and their relation to each other for a single logical connection. The relation between the configuration elements (present on the ConnectionManager) and their resulting runtime elements (present or created on the AutomationComponents being part of the logical connection) is indicated by dashed arrows.
Connection1 contains two ConnectionEndpointConfigurations for the two ConnectionEndpoints EndpointA and EndpointB. Each ConnectionEndpointConfiguration contains all parameters required for creating the ConnectionEndpoint, verifying the affected FunctionalEntity, requesting ControlGroups, and application configuration.
The ConnectionConfigurationSet provides two PubSubCommunicationFlowConfiguration Objects, Flow1 and Flow2. They provide communication configuration (e.g., interval, timeout or QoS) and are referenced by the Endpoints with ToOutboundFlow and ToInboundFlow References. Note that while an Object of type SubscriberConfigurationType (SubA, SubB) contains configuration for the Subscriber only, its parent PubSubCommunicationFlowConfigurationType Object contains configuration relevant for both the Publisher and Subscriber. The configuration contained in Flow1 is used for setting up the Publisher on ServerA, and the configuration contained in SubB and Flow1 is for setting up the Subscriber on ServerB. Flow2 and SubA are used for setting up Publisher and Subscriber in the opposite direction.
EndpointA and EndpointB are each referenced by an AutomationComponentConfiguration AC_A and AC_B, which hold the FunctionalEntities involved in this logical connection. AC_A and AC_B contain the parameters for verifying Assets. AC_A and AC_B may optionally include the PubSubCommunicationModelConfiguration PubSubModelA and PubSubModelB.
AC_A and AC_B are each referenced by a ServerAddress ServerA and ServerB, containing the configuration required for the ConnectionManager to be able to establish a secure Session to ServerA and ServerB.

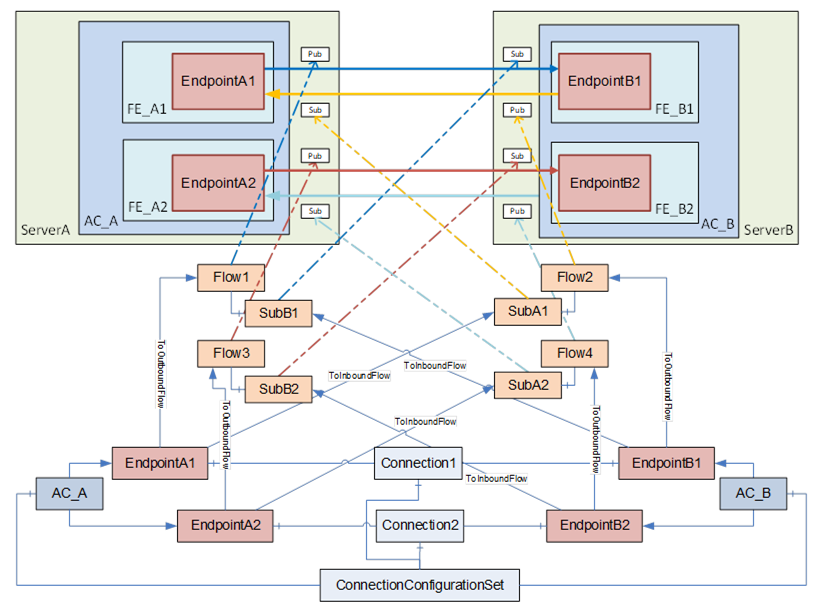

Multiple logical connections may be configured between two or more AutomationComponents, using unicast or multicast communication. Examples for each of the options are illustrated.

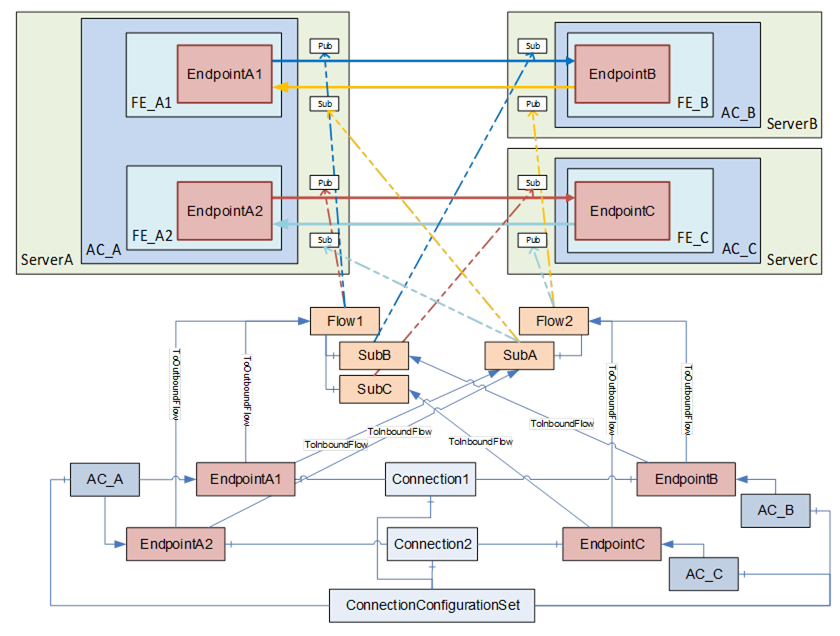

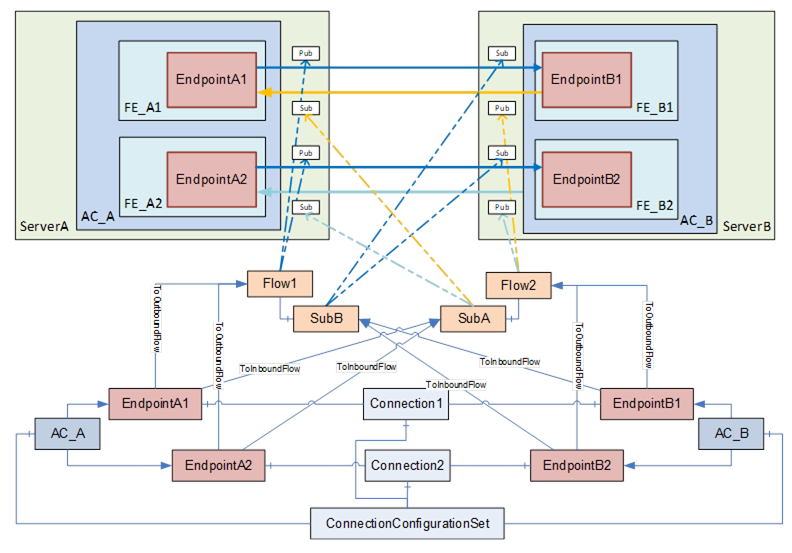

Often traffic between two AutomationComponents will be optimized to use one NetworkMessage. EndpointA1 and EndpointA2 share PubSubCommunicationFlowConfiguration Flow1 with a ToOutboundFlow Reference and share SubscriberConfiguration SubA with a ToInboundFlow Reference to ensure the same set of parameters for the outbound and inbound NetworkMessage. The same applies to EndpointB1 and EndpointB2.

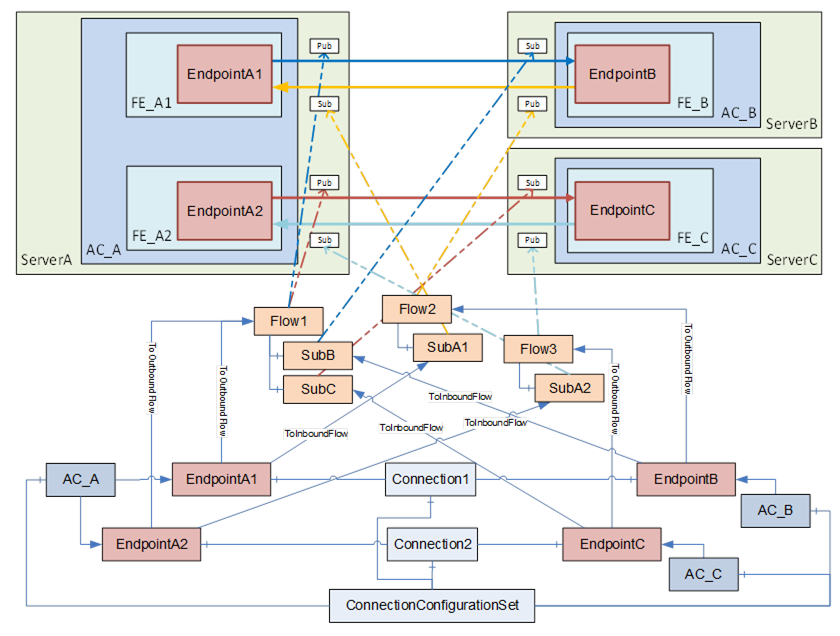

A variant of this scenario is illustrated in Figure E.3. In this example, one of the connections requires a fast PublishingInterval and Qos for the exchange of real-time data, and the other connection requires a slow PublishingInterval and best-effort for the exchange of status data.
NOTE In this and the following figures, ServerAddress, HasCommunicationFlowConfiguration References, and PubSubCommunicationModelConfigurations are omitted for brevity. Refer to Figure E.1 for a complete view.
Since outbound traffic from AC_A is using multicast in this scenario, both EndpointA1 and EndpointA2 refer to PubSubCommunicationFlowConfiguration Flow1 with a ToOutboundFlow Reference. Flow1 contains two SubscriberConfigurations, SubB and SubC. This allows, for example, EndpointB and EndpointC to have different settings for the MessageReceiveTimeout. EndpointB and EndpointC refer to their specific Subscriber configuration with ToInboundFlow. If EndpointB and EndpointC do not require different SubscriberConfigurations, both endpoints could also refer to a single instance of SubscriberConfigurationType.
The unicast traffic in the opposite direction can also be modelled in various ways. The example shown in Figure E.4 allows different configuration settings for the unicast traffic with the PubSubCommunicationFlowConfiguration Flow2 and Flow3.
The ConnectionManager uses the information in the ConnectionConfigurationSet to establish all contained Connections. The configuration information required as input to call EstablishConnections on a particular AutomationComponent can be retrieved by following the References starting at each of the AutomationComponents listed in the ConnectionConfigurationSet.
The ConnectionManager iterates through the AutomationComponentConfigurations. The ConnectionManager establishes a secure Session based on the information contained in the ServerAddress (see 13.3.2) for each AutomationComponent. The ConnectionManager must resolve all PortableNodeIdentifiers contained in the configuration information (see 13.3.3).
If a PubSubCommunicationConfigurationModel was generated by the engineering tool generating the ConnectionConfigurationSet, the ConnectionManager must resolve the NodeIds contained in it (see 188.8.131.52). The ConnectionManager must ensure that the PubSubCommunicationFlowConfigurations and SubscriberConfigurations are reflected in the PubSubCommunicationModelConfiguration.

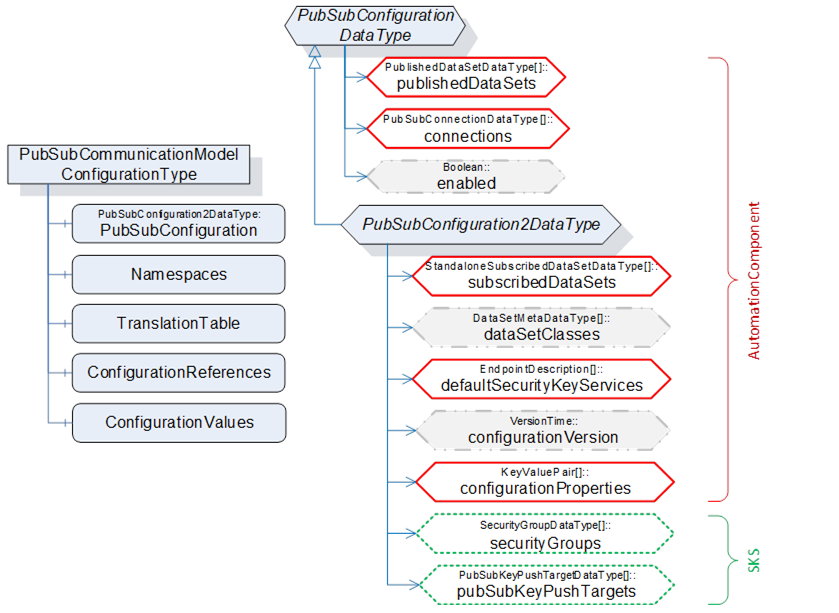

If the PubSubCommunicationConfigurationModel was not supplied by the engineering tool, the ConnectionManager must create one based on the information contained in the PubSubCommunicationFlowConfigurations.
- which is targeted for the AutomationComponent (PublishedDataSets, Connections, SubscribedDataSets, ConfigurationProperties and defaultSecurityKeyServices), illustrated in Figure E.6 as red boxes with straight lines,
- which is targeted for the SKS (SecurityGroups, and PubSubKeyPushTargets), illustrated in Figure E.6 as green boxes with dashed lines,
- and information which is ignored, illustrated in Figure E.6 as grey boxes with dashed double dotted lines (see CloseAndUpdate in OPC 10000-14).
The ConnectionManager establishes all Connections by calling EstablishConnections on each AutomationComponent (see 184.108.40.206). This includes the communication model information targeted for the AutomationComponent (i.e., SecurityGroups and PubSubKeyPushTargets are omitted). If using PubSub, a specific sequence of calls may be required (see E.2.1).
For PubSub as a communication model, OPC 10000-14 requires certain configuration values (e.g., PublisherId, WriterGroupId, and DataSetWriterId) to match the Publisher and its corresponding Subscribers. However, unique Ids may be generated by the addressed AutomationComponent and may not be known by the ConnectionManager beforehand.

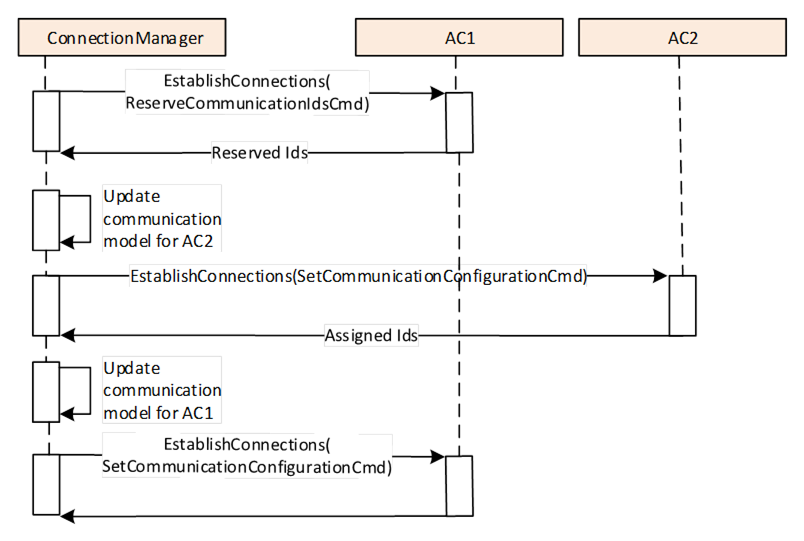

Assuming a simple example, where a ConnectionManager must establish a ConnectionConfigurationSet containing logical connections between two AutomationComponents. The ConnectionManager may use the sequence illustrated in Figure E.7.
- The ConnectionManager calls EstablishConnections on AC1 using the ReserveCommunicationIdsCmd to reserve WriterGroupIds, and DataSetWriterIds for the publishing side (i.e., WriterGroups, and DataSetWriters for AC1) and to retrieve the default PublisherId. This Call will typically contain the VerifyAssetCmd and the VerifyFunctionalEntityCmd if required; all further commands for AC1 are issued in step (3).
- The ConnectionManager updates the communication configuration for AC2 regarding the subscribing side (DataSetReaders) using the Ids reserved in step (1). The ConnectionManager will set the publishing side of the communication configuration for AC2 to null Ids. The ConnectionManager calls EstablishConnections on AC2 using the SetCommunicationConfigurationCmd for adding the updated communication configuration. AC2 assigns Ids to the publishing side of the communication configuration and returns the information. This Call will typically contain all other required commands.
- The ConnectionManager updates the communication configuration for AC1 regarding the publishing side using the Ids reserved in step (1) and the subscribing side using the Ids returned from step (2). The ConnectionManager calls EstablishConnections on AC1 using the SetCommunicationConfigurationCmd to add the complete communication configuration. This Call will typically contain all further required commands.

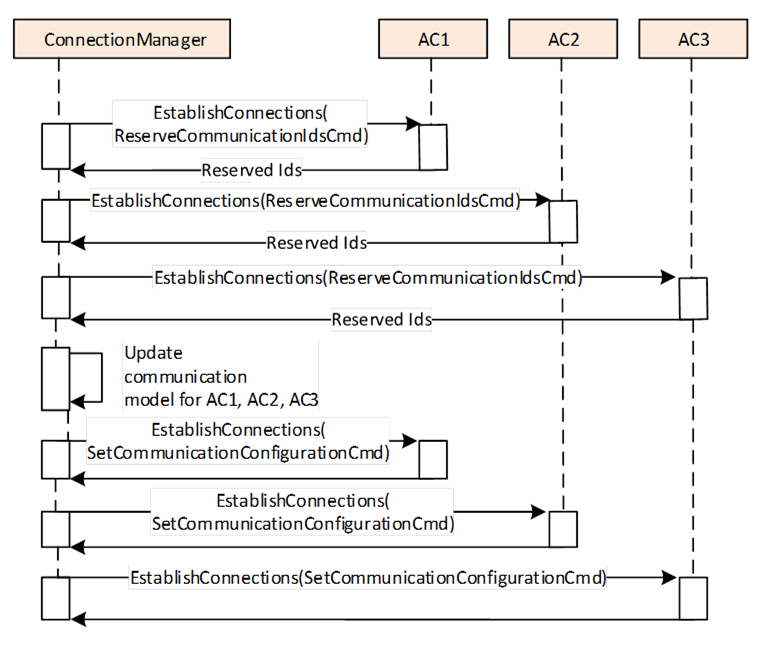

Multiple logical connections across multiple AutomationComponents may require more steps. Assume that a ConnectionManager must establish a ConnectionConfigurationSet containing logical connections between multiple AutomationComponents.
- The ConnectionManager calls EstablishConnections on AC1, AC2, and AC3 using the ReserveCommunicationIdsCmd to reserve WriterGroupIds, and DataSetWriterIds for the publishing side (i.e., WriterGroups, and DataSetWriters for AC1, AC2 and AC3) and to retrieve the default PublisherId.
- The ConnectionManager updates the communication configuration for AC1, AC2, and AC3 regarding the publishing and subscribing side (DataSetReaders) using the Ids reserved in step (1). The ConnectionManager then calls EstablishConnections on AC1, AC2, and AC3 using the SetCommunicationConfigurationCmd to add the complete communication configuration.
If all logical connections are related to one AutomationComponent in our sample, this would be AC1. The sequence could be optimized as follows:
- The ConnectionManager calls EstablishConnections on AC1 using the ReserveCommunicationIdsCmd to reserve WriterGroupIds, and DataSetWriterIds for the publishing side (i.e., WriterGroups, and DataSetWriters for AC1) and to retrieve the default PublisherId.
- The ConnectionManager updates the communication configuration for AC2 and AC3 regarding the subscribing side (DataSetReaders) using the Ids reserved in step (1). The ConnectionManager will set the publishing side of the communication configuration for AC2 and AC3 to null Ids. The ConnectionManager calls EstablishConnections on AC1 and AC2 using the SetCommunicationConfigurationCmd for adding the updated communication configuration. While adding the communication configuration, AC2 and AC3 assign Ids to the publishing side of the communication configuration applied and will return the information.
- The ConnectionManager updates the communication configuration for AC1 regarding the publishing side using the Ids reserved in step (1), and the Ids returned from step (2). The ConnectionManager calls EstablishConnections on AC1 using the SetCommunicationConfigurationCmd for adding the complete communication configuration.

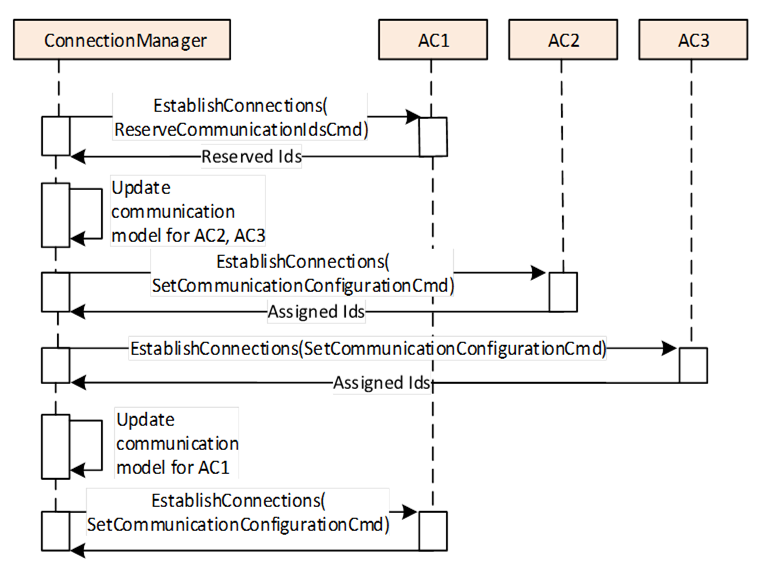

This optimized sequence is illustrated in Figure E.9
The ConnectionManager may also use a variant of the sequences above, for example, using SetCommunicationConfigurationCmd, with the publishing side of the communication configuration having null Ids instead of using the ReserveCommunicationIdsCmd. In this case, the subscribing side of the communication configuration will be added in a separate step.
This section describes the configuration settings for the connection types defined in clause 5.5.1 using PubSub as a communication model. For simplicity, all samples describe a single logical connection contained in the ConnectionConfigurationSet. Note, however, that as shown in E.1.3, a ConnectionConfigurationSet may contain multiple Connections, which may have different connection types.
The examples provide illustrations of how PubSub communication can be configured. The configuration contains various settings which have an influence on the communication model, including Address, PublishingInterval, QoS, MessageReceiveTimeout, ReceiveQos and SecurityMode (see 6.13.3 for additional details). Some of these settings can be complex to apply, such as the Address. Depending on the type of connection, this Address might contain a destination address, a receiving address, or a multicast address.

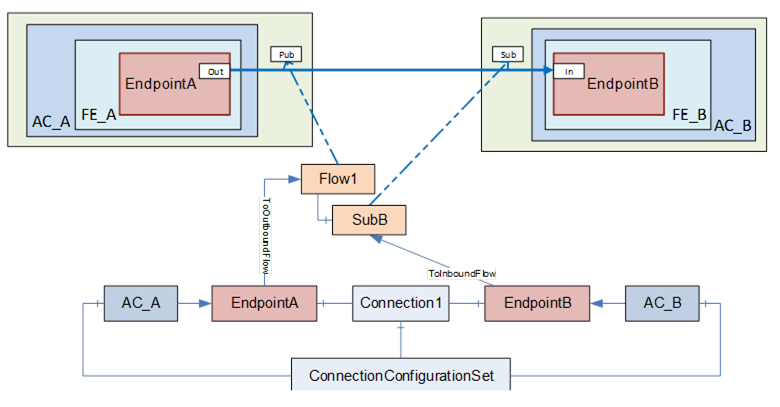

To set up the PubSubConfiguration for the bidirectional connection (illustrated in Figure E.1), information from multiple configuration elements is used, as illustrated in Figure E.10. For a simpler overview, configuration data not related to the communication model and the Endpoint2 are omitted.
CommunicationModelConfig contains the PubSub configuration elements to be applied to the AutomationComponent. The ConnectionManager uses the configuration information in Flow1 and Sub1 to update the communication model. CommunicationLinks indicate which DataSetReader and DataSetWriter contained in the communication model are relevant for this ConnectionEndpoint. This information is also used to set up the ToDataSetReader and ToDataSetWriter References on Con_A.
- EndpointA, indicating InputVariables and OutputVariables,
- EndpointB, indicating InputVariables and OutputVariables,
- Flow1 and SubB describing the configuration for the information flow from EndpointA to EndpointB,
- Flow2 and SubA for the information flow from EndpointB to EndpointA.
- EndpointA, indicating OutputVariables,
- EndpointB, indicating InputVariables,
- Flow1 and SubB describing the configuration for the information flow from EndpointA to EndpointB,
- Flow2 and SubA for the heartbeat from EndpointB to EndpointA.
- EndpointA, indicating OutputVariables,
- EndpointB, indicating InputVariables,
- Flow1 and SubB describing the configuration for the information flow from EndpointA to EndpointB

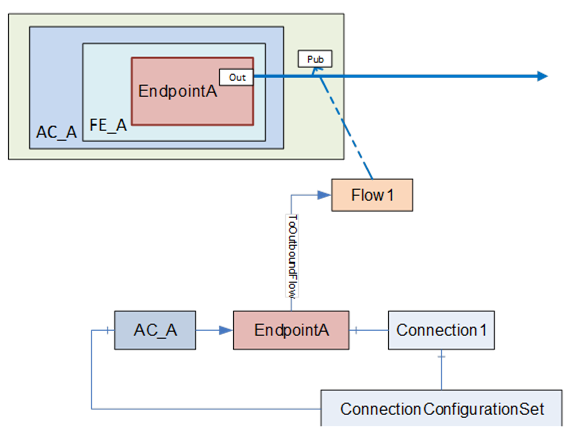

- EndpointA, indicating OutputVariables,
- Flow1 describing the configuration for the information flow from EndpointA to one or more unknown Subscribers.

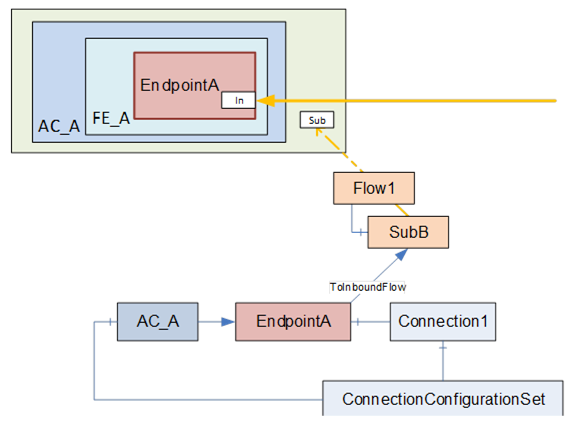

- EndpointA, indicating InputVariables,
- Flow1 and SubA describing the configuration for the information flow from an unknown Publisher to EndpointA.
For an autonomous subscriber, no ToOutboundFlow Reference is required. Configuration which applies only to the Publisher of the information flow may be omitted, i.e., Address and TransmitQos (see E.4.1).
- The SKS is responsible for generating keys for its configured SecurityGroups. The SKS may expose the SecurityGroups in its Information Model.
- A Publisher uses the current key to sign or sign and encrypt NetworkMessages, and Subscriber(s) to authenticate or authenticate and decrypt NetworkMessages. The past key, current key and a requested number of future keys are distributed from the SKS to the Publisher and the Subscriber(s) using the push or pull model. How past, current and future keys are stored and organized on the Publisher and Subscriber(s) is vendor-specific.
In the push model, the set of keys is pushed by the SKS to the AutomationComponents using SetSecurityKeys. In the pull model, the set of keys is pulled by the AutomationComponents from the SKS using GetSecurityKeys.
The SecurityGroupId links the key generation side (i.e., the SKS) and the key usage side (i.e., Publisher, Subscriber). If an AutomationComponent calls GetSecurityKeys on the SKS or an SKS calls SetSecurityKeys on the AutomationComponent with a specific SecurityGroupId, all WriterGroups and DataSetReaders utilizing the SecurityGroupId on the AutomationComponent will get the new set of keys.
PubSubKeyPushTargets are used on the SKS to manage the distribution of the keys for the push model. They have no equivalent on the key usage side. The SKS may expose the PubSubKeyPushTargets in its Information Model.
The SKS responsible for generating the security keys related to a ConnectionConfigurationSet is indicated in the ConnectionConfigurationSet by the SecurityKeyServer configuration. In addition, the SecurityKeyServer indicates whether to use the push or pull model for the distribution of the security keys.
Every UAFX implementation compliant with the “http://opcfoundation.org/UA-Profile/UAFX-Controller-Profile” supports the SKS push model. An AutomationComponent indicates support for the pull model by the Facets it includes in its ServerProfileArray (“http://opcfoundation.org/UA-Profile/Publisher/MessageSecurity” for a Publisher and “http://opcfoundation.org/UA-Profile/Subscriber/MessageSecurity” for a Subscriber). The ServerProfileArray may be retrieved online or from the Descriptor.
ConnectionManager and SKS may be located on the same Server. In this case, the ConnectionManager may use vendor-specific means to configure the SKS. If the ConnectionManager and SKS are located on different Servers, the SKS exposes its configuration model. A ConnectionManager may wish to optimize its communication with the external SKS. These examples illustrate this communication.

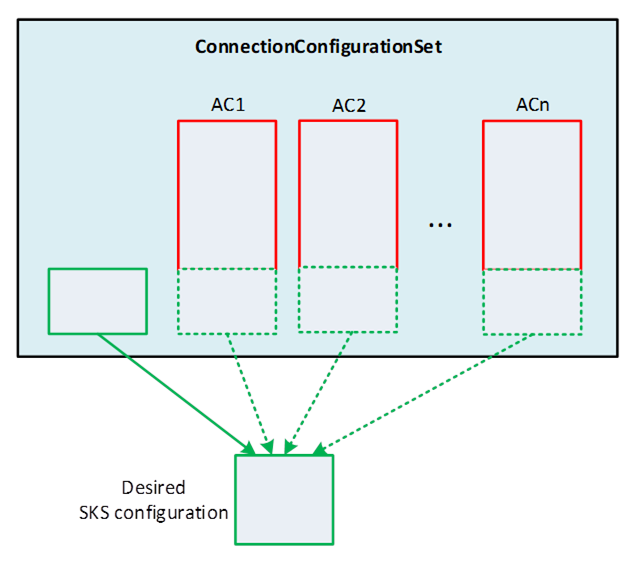

As illustrated in Figure E.16, the ConnectionManager constructs the desired configuration for the SKS from the set of SecurityGroups and PubSubKeyPushTargets in the PubSubCommunicationModelConfiguration (see 6.16.3) for all AutomationComponentConfigurations in the ConnectionConfigurationSet.

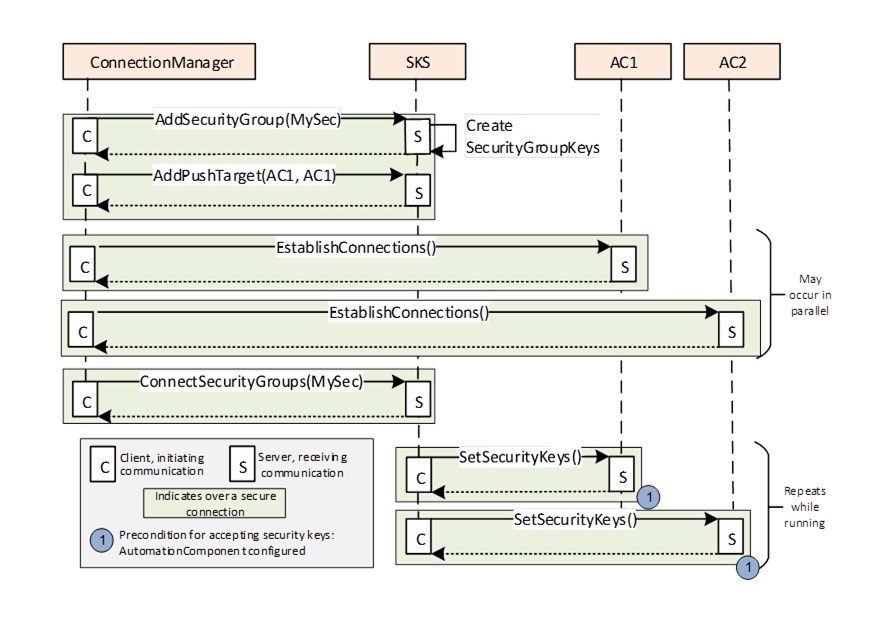

Figure E.17 illustrates the configuration of the SKS for the push model.
The ConnectionManager applies the desired configuration on the SKS:
- SecurityGroups are added to the SKS using AddSecurityGroup,
- PubSubKeyPushTargets are added to the SKS using AddPushTarget and ConnectSecurityGroups.
After the SKS configuration is finished, the SKS will start to periodically push the keys to the AutomationComponents registered with the push targets. A push target will accept keys only if they are from an SKS that is trusted and the SecurityGroupId is known. SecurityGroupIds (for a Publisher in the WriterGroup, for a Subscriber in the ReaderGroup/DataSetReader) are configured by the ConnectionManager on the AutomationComponent as part of the EstablishConnections Call. If a push target rejects SetSecurityKeys, the SKS will continue to retry at RetryInterval. If a push target accepts SetSecurityKeys, the SKS will repeat pushing keys at a period of half KeyLifetime (see OPC 10000-14).
For a push model configuration, it is recommended that the ConnectionManager establishes the Connections on the AutomationComponents before updating the SKS. It is recommended to perform as much configuration as possible in parallel, which may mean that the SKS configuration completes before all of the Subscribers and Publishers are configured (each configuration is processed in a separate thread).

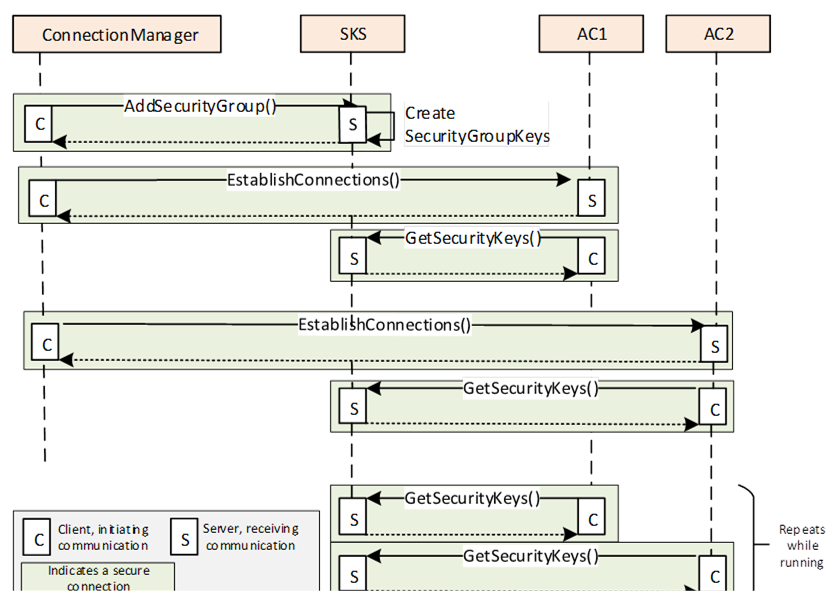

Figure E.18 illustrates the configuration of the SKS for the pull model.
The ConnectionManager applies the desired configuration on the SKS:
SecurityKeyServer and SecurityGroupIds (for a Publisher in the WriterGroup, for a Subscriber in the ReaderGroup/DataSetReader) are configured by the ConnectionManager on the AutomationComponent as part of the EstablishConnections Call. After the AutomationComponent configuration is finished, the Publisher/Subscriber periodically accesses the SKS and pulls keys. The Publisher/Subscriber would have to have Client capabilities. The SKS will return keys only if it trusts the Client making the connection and the SecurityGroupId is known. The pull can be triggered on the Subscriber by the reception of a NetworkMessage using a new key from the Publisher. The Subscriber keeps a certain number of future keys, and when a new one is used by the Publisher, it is already cached and available.
For a pull model configuration, it is recommended that the ConnectionManager establishes the Connections on the AutomationComponents after updating the SKS. If the SKS rejects GetSecurityKeys (e.g., SecurityGroups have not yet been added to the SKS), the next GetSecurityKeys is repeated by the AutomationComponent using vendor-specific retry logic.
It is important to understand that end-to-end communication will not occur until all parties (Publisher, Subscriber, and SKS) have been configured by the ConnectionManager and current keys have been distributed to Publishers and Subscribers. For the push model, the SKS continues to retry pushing keys using SetSecurityKeys at the RetryInterval if an AutomationComponent is not yet configured. For the pull model, the AutomationComponent continues to retry pulling keys using GetSecurityKeys using vendor-specific retry logic if the SKS is not yet configured. Retry intervals can affect how fast communication starts for a Connection. Typically, a retry interval should be short enough to not delay communication but not so short that they overload network traffic or the Server. See OPC 10000-14 for additional details on SecurityKeyServices.
The ConnectionConfigurationSet contains a PubSubConfiguration Variable that has a DataType that is a large structure. This structure is passed to the EstablishConnections Method to provide the required information to the AutomationComponent to configure PubSub communication on that AutomationComponent. Some information that is inside of this data structure may need to be adjusted by an OPC UA Client (see 5.5.2). To facilitate this possible adjustment, some aspects of the large structure are exposed as Variables in the ConnectionConfigurationSet.

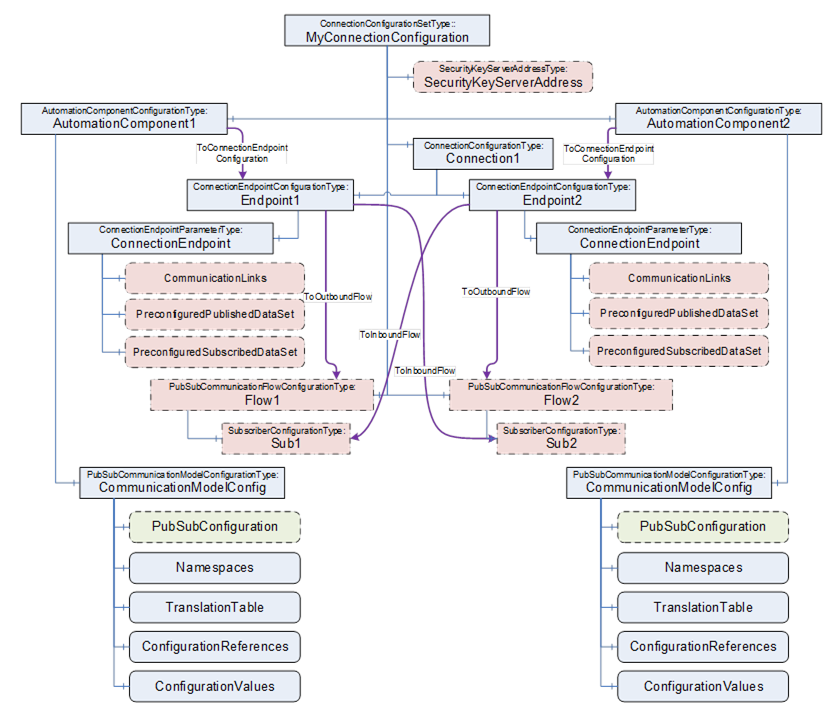

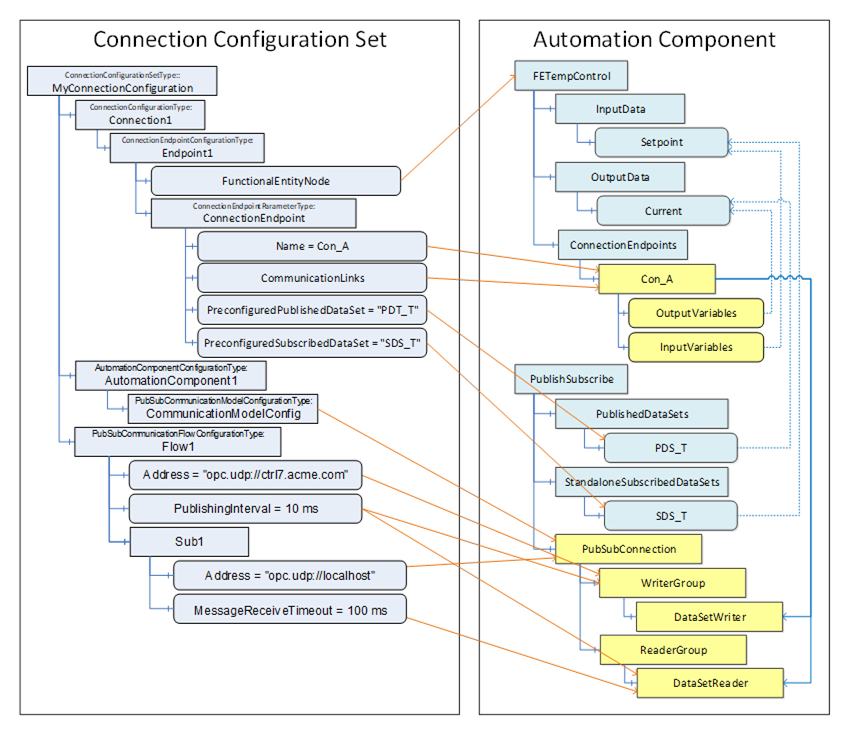

Figure E.19 illustrates the relation between elements in the ConnectionConfigurationSet and the PubSubConfiguration. Note that for clarity, parts of the ConnectionConfigurationSet are omitted. For an overview of all elements in the ConnectionConfigurationSet, please refer to Figure 35.
Each AutomationComponentConfiguration listed in the ConnectionConfigurationSet has its individual PubSubCommunicationModelConfiguration. The PubSubCommunicationModelConfiguration holds the PubSubConfiguration (highlighted in green with a dashed line).
- PubSubConnectionEndpointParameter Variables CommunicationLinks, PreconfiguredPublishedDataSet, and PreconfiguredSubscribedDataSet are related to DataSetReader and DataSetWriter in the PubSubConfiguration
- PubSubCommunicationFlowConfiguration Object including its SubscriberConfiguration child Objects and SecurityKeyServerAddress Object contain Variables related to PubSubConnections, ReaderGroups and WriterGroups in the PubSubConfiguration
All of the related Variables are of SelectionListType, which allows limiting the choice that can be made (see 6.8.1). After a ConnectionConfigurationSet is edited (see 6.7.3), the ConnectionManager reflects the changes into the PubSubConfiguration.

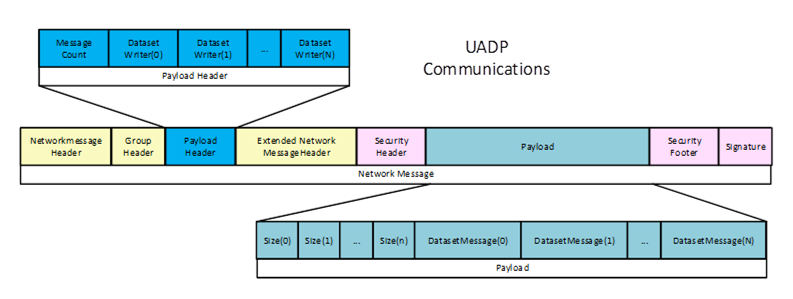

Clause E.6 indicates PubSubConfiguration settings which are based on using UDP-UADP as the transport profile and UADP-Periodic-Fixed as the header layout profile. Details for other transport or header layout profiles may be added in a later version of this document.
As defined in OPC 10000-14, a WriterGroup defines the Publisher of a NetworkMessage. It is recommended that the PubSubConfiguration contains a WriterGroup for each instance of PubSubCommunicationFlowConfigurationType. For the example illustrated in Figure E.5, a WriterGroup in AC_A is generated based on the parameters in Flow1, and a WriterGroup is generated for each AC_B and AC_C based on the parameters in Flow2.

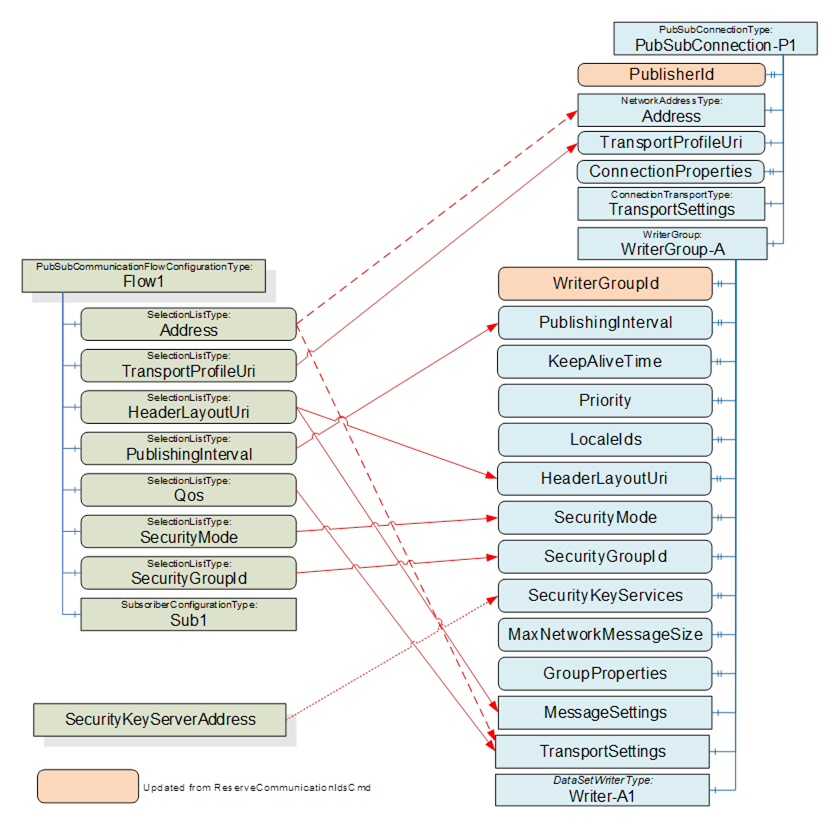

Figure E.20 illustrates the relation between the PubSubCommunicationFlowConfiguration and the PubSubConnection and WriterGroup within the PubSubConfiguration. If any changes are made to the PubSubCommunicationFlowConfiguration, the related PubSubConnection information, as illustrated in Figure E.20, will be updated.
Depending on the transport profile and on the type of Address (unicast or multicast), the Address will be in the PubSubConnection or in the WriterGroup’s TransportSettings; see OPC 10000-14 for details. As an example, if UDP-UADP is used as the transport profile, a unicast address is set in the WriterGroup, but a multicast address is set in the PubSubConnection.
TransportProfileUri is used to set up the information in the PubSubConnection, whereas HeaderLayoutUri, PublishingInterval, Qos, SecurityMode and SecurityGroupId are used to set up the information in the WriterGroup.
The PubSubConnection elements ConnectionProperties and TransportSettings are transport specific. For the TransportProfileUri “http://opcfoundation.org/UA-Profile/Transport/pubsub-udp-uadp” (UDP-UADP), both are set to null.
The WriterGroup elements GroupProperties and TransportSettings are transport specific. For UDP-UADP, GroupProperties is set to null. For UDP-UADP, the elements MessageDelay, MessageRepeatCount, Address, QosCategory, and DatagramQos are defined in TransportSettings. The value of MessageDelay and MessageRepeatCount depends on the header layout. For HeaderLayoutUri. For “http://opcfoundation.org/UA/PubSub-Layouts/UADP-Periodic-Fixed” (UADP-Periodic-Fixed), both are set to 0. QosCategory and DatagramQos are derived from Qos.
The WriterGroup element MessageSettings is transport-specific. For UDP-UADP, the GroupVersion is defined by the generator of the ConnectionConfigurationSet. To ensure a consistent definition of the GroupVersion, it is recommended that the WriterGroup is configured completely within one ConnectionConfigurationSet. NetworkMessageContentMask and DataSetOrdering are derived from the HeaderLayoutUri. PublishingOffset and SamplingOffset may be set to a negative value, meaning not used. They may be used when additional Quality of Services are specified.
For MaxNetworkMessageSize, follow the recommendations in OPC 10000-14. For UADP-PeriodicFixed, KeepAliveTime should be set to PublishingInterval. LocaleIds may be set to a value different from null if the translation of Strings will be done by the Publisher. Priority may be used to set the relative priority of the WriterGroup for processing it.
As defined in OPC 10000-14, DataSetReaders in a ReaderGroup may extract their DataSetMessages from different NetworkMessages. However, it is recommended that the PubSubConfiguration generated for an AutomationComponent contains a ReaderGroup for each PubSubCommunicationFlowConfiguration. By this, common parameters (e.g., SecurityGroupId, SecurityKeyServices, TransportSettings, or MessageSettings) are configured on the ReaderGroup and do not need to be repeated in each DataSetReader.
For the example illustrated in Figure E.5, a ReaderGroup in AC_A is generated based on the parameters in SubA, a ReaderGroup is generated for each AC_B based on the parameters in SubB, and a ReaderGroup is generated in AC_C based on the parameters in SubC.

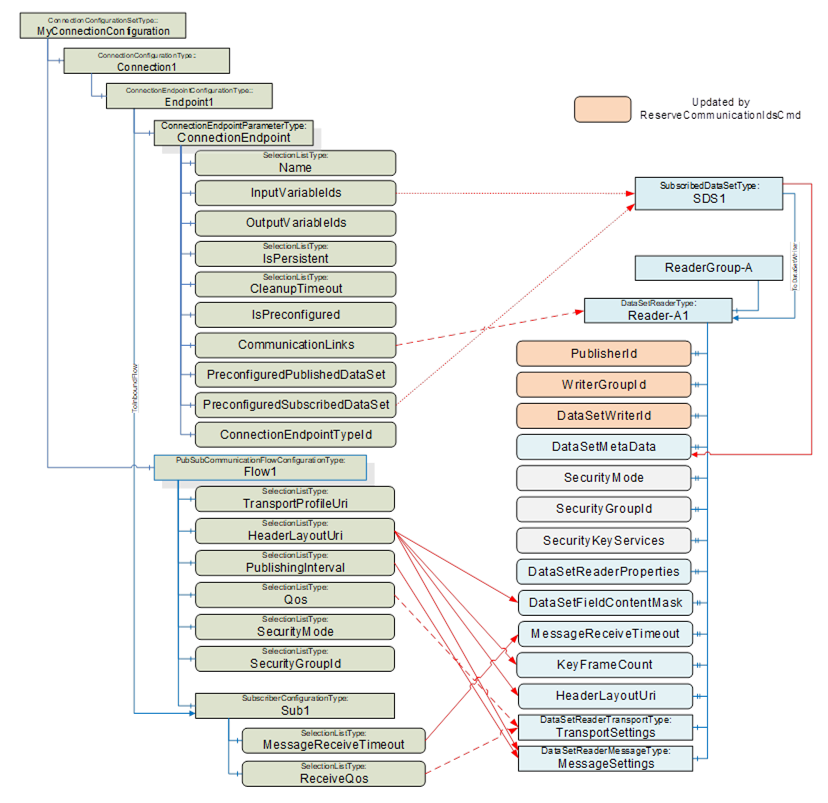

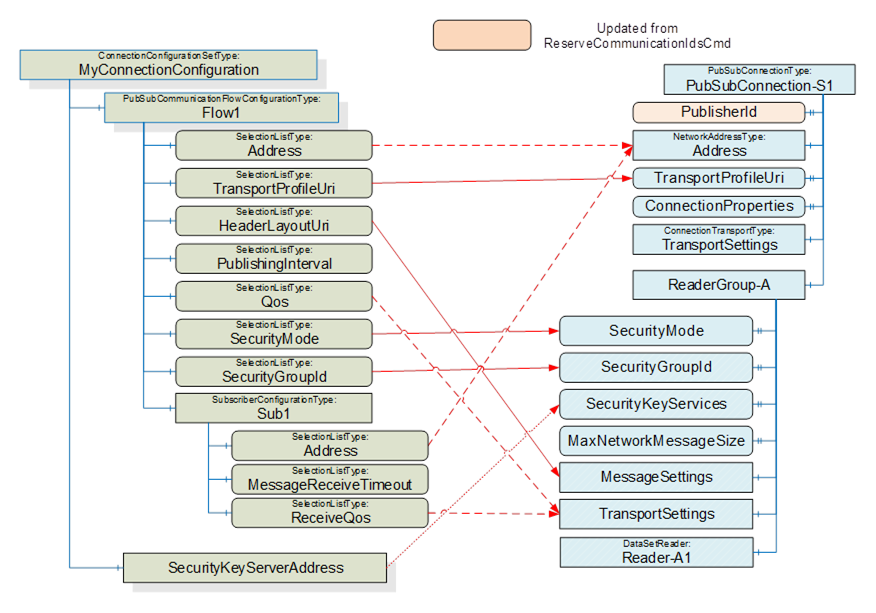

Figure E.21 illustrates the relation between the SubscriberConfiguration and the PubSubConnection and ReaderGroup within the PubSubConfiguration. Note that the SubscriberConfiguration uses information from the parent Object as illustrated.
TransportProfileUri is used to set up the information in the PubSubConnection, whereas HeaderLayoutUri, PublishingInterval, Qos, SecurityMode and SecurityGroupId are used to set up the information in the ReaderGroup.

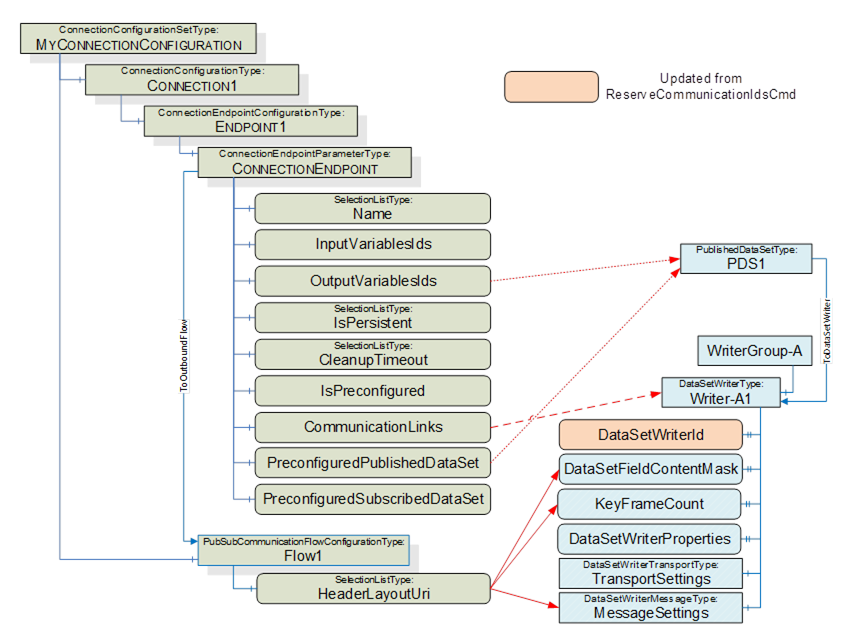

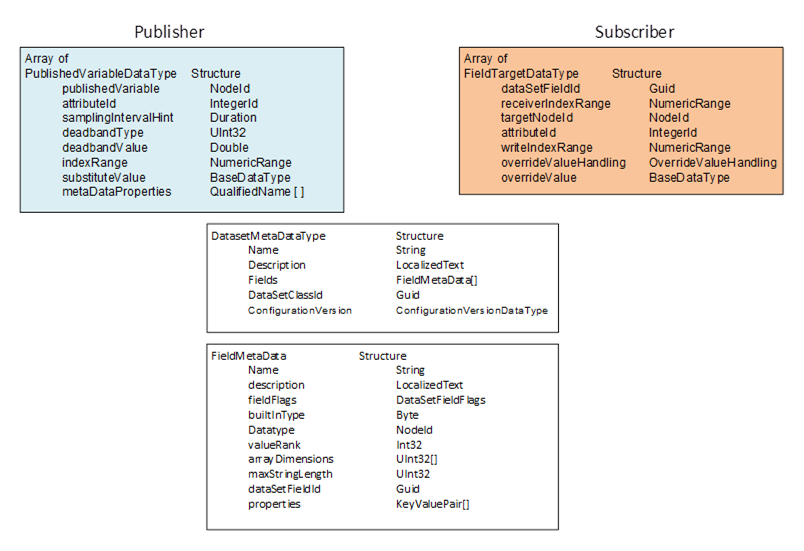

The ToDataSetWriter reference can be derived from either the PreconfiguredPublishedDataSet or from a custom PublishedDataSet within the PubSubConfiguration. The PublishedDataSet contains the OutputVariableIds specified in the ConnectionEndpointParameter.

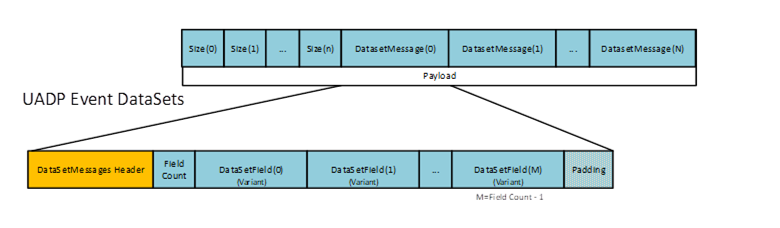

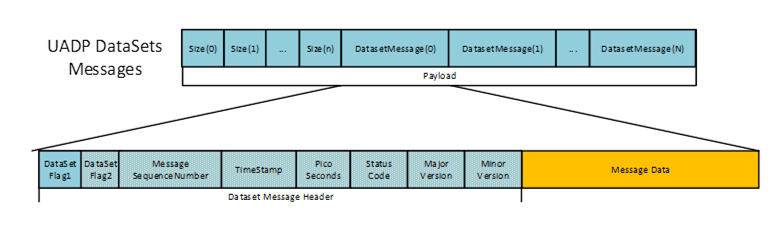

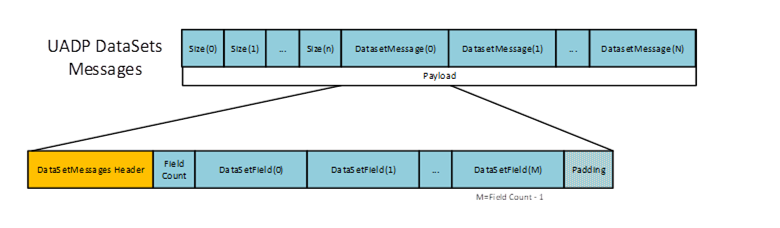

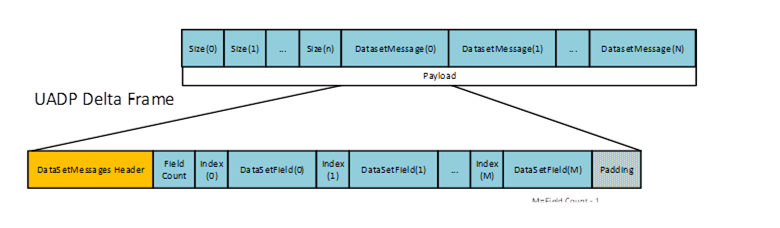

The DataSetWriter element MessageSettings is transport-specific. For UDP-UADP, the DataSetMessageContentMask, ConfiguredSize, NetworkMessageNumber, and DataSetOffset are derived from the HeaderLayoutUri. For UADP-Periodic-Fixed ConfiguredSize, NetworkMessageNumber and DataSetOffset of the DataSetMessage are determined by the generator of the PubSubConfiguration.
For UADP-Periodic-Fixed, the KeyFrameCount is set to 1.
It is recommended to update PublisherId, WriterGroupId and DataSetWriterId after issuing the ReserveCommunicationIdsCmd; see E.2.1 for details. The values are set corresponding to the Publisher of the DataSetMessage.
The ToDataSetReader reference can be derived from either the PreconfiguredSubscribedDataSet or from a custom SubscribedDataSet within the PubSubConfiguration. The SubscribedDataSet contains the InputVariableIds specified in the ConnectionEndpointParameter.
The DataSetReader element MessageSettings is transport-specific. For UDP-UADP, NetworkMessageNumber, DataSetOffset, NetworkMessageContentMask, and DataSetMessageContentMask are derived from the HeaderLayoutUri. For UADP-Periodic-Fixed, NetworkMessageNumber and DataSetOffset of the DataSetMessage are determined by the generator of the PubSubConfiguration. ReceiveOffset and ProcessingOffset may be set to a negative value, meaning not used. They may be used when additional Quality of Services are specified. GroupVersion and PublishingInterval are set corresponding to the Publisher of the DataSetMessage. DataSetClassId may be set to NULL.
For UDP_UADP, no DataSetReaderProperties are defined.
The ConnectionConfigurationSet can contain a PubSubConfiguration, which has a datatype of PubSubConfiguration2DataType. The PubSubConfiguration2DataType is a complex structure that can include Datasets (published or subscribed) that would include fields that are of NodeId DataType. NodeIds contain a NamespaceIndex. The NamespaceIndex is an index into a NamespaceArray that contains the URI that describes the owner of the Node. On a Server, this NamespaceArray is in the Server Object and is used to resolve all nodes on the Server. But in this case, the PublishedDataSet or SubscribedDataSet describes Variables that are on the Publisher or Subscriber Server, which is very likely to be a different Server. Depending on how the ConnectionConfigurationSet and PubSubConfiguration were generated, the Namespaces may not exist on the ConnectionManager Server.
This document describes how these NodeId are to be resolved to the correct Namespace indexes on the target Server before the structure is transmitted as part of an EstablishConnections (see 220.127.116.11). No issues exist in using the structure to set up a Connection, but if the configuration of the ConnectionManager Server is saved as a UANodeSet XML File or if the ConnectionConfigurationsSet is generated in an engineering tool and loaded into the ConnectionManager Server, problems could arise.
The general rules for processing UANodeSet XML file are described in OPC 10000-6 Annex F.14 This section provides the following instructions related to NodeIds:
When generating a UANodeSet XML file, the NamespaceArray is included at the top of the UANodeset XML file. The Indexes may be updated to match the list of Namespaces listed at the top of the generated file. But in this case, not all Namespace entries might be defined in the ConnectionManager Server. So, exporting a UANodeset XML from the Server could result in an error (if the index in a Node does not exist in the Server’s NamespaceArray), or it could result in an incorrect Namespace being referenced. The simplest solution is to ensure that the ConnectionManager Server include all Namespaces in its NamespaceArray, even if the only Node using that Namespace is in the complex data structure.
When an engineering tool generates a ConnectionConfigurationSet, if it includes DataSets, then it will need to ensure that any NodeId it generates for its ConnectionManager’s Server does not have a translation issue. Multiple options exist:
- This could be done by ensuring that the ConnectionManager Server configuration includes all Namespaces used for all NodeIds, even if the NodeIds are not on the ConnectionManager’s Server.
- The ConnectionManager’s Server could understand the ConnectionConfigurationSet PubSubConfiguration and bypass standard processing for the PubSubConfiguration (i.e., not map).
- The engineering tool does not provide DataSets that include Variables, and the ConnectionManager generates the PubSubConfiguration.
The actual manner that this is handled is vendor-specific, but the developer should be aware of these related issues.
