This Object allows access to the Server’s configuration and it is the target of an HasComponent reference from the Server Object defined in OPC 10000-5.

This Object and its immediate children shall be visible (i.e. browse access is available) to users who can access the Server Object. The children of the CertificateGroups Object should only be visible to Clients with access to the SecurityAdmin Role.

Its representation in the AddressSpace is formally defined in Table 63.

Table 63 – ServerConfiguration Object Definition

Attribute

Value

BrowseName

0:ServerConfiguration

TypeDefinition

0:ServerConfigurationType defined in 7.10.3.

References

NodeClass

BrowseName

DataType

TypeDefinition

Modelling Rule

Conformance Units

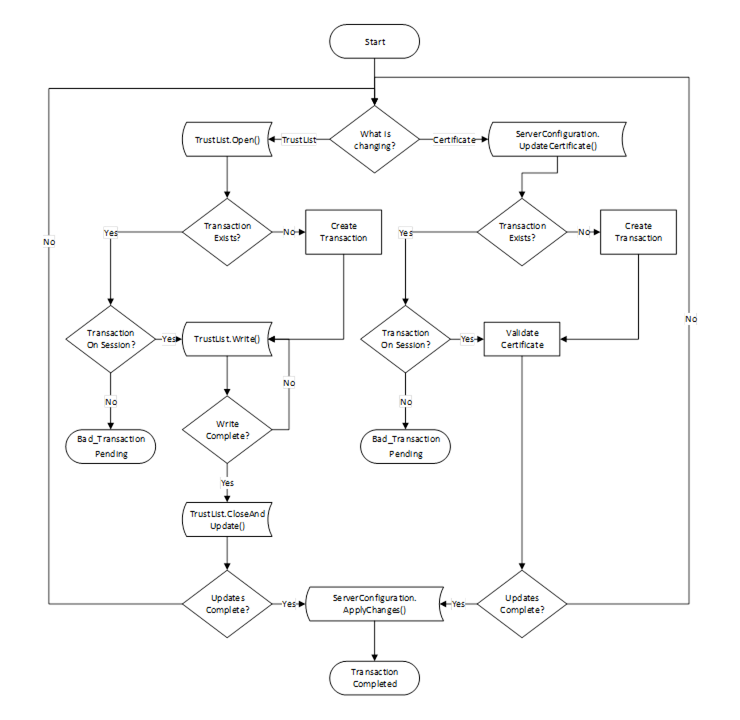

Push Model for Global Certificate and TrustList Management
